Vacupress Flex suction and pressure hose

internal Ø 80 mm / wall thickness 8.0 mm / PVC / per m

morepic-1
Item #: GFZXXX320012
Weight (kg): 3.02 kg
In stock
Nightdelivery
Incl. VAT: 53,37 €
Excl. VAT:
44,85 €
To the product details To the accessories
Suction and pressure hose Vacupress Flex

Double-layer PVC suction and pressure hose. Galvanized steel spiral embedded in the first layer. Polyester yarn reinforcement between the first and second PVC layer. Smooth inside and outside. Very flexible, even at low temperatures.

Applications:
  • Manure hose
  • Municipal systems
  • Irrigation systems

Technical data:
  • Temperature range: -25 °C to +60 °C
  • Vacuum: 9 m column of water
  • Abrasion resistance as per ISO 4649: < 160 mm³
  • Operating pressure: 10 bar
  • Bursting pressure: 32 bar
  • Bending radius: 220 mm
  • Internal diameter: 80 mm
  • Wall thickness: 8 mm


Not found yet?

Accessories

Female section - Italian system
Female section - Italian system

5" with connector Ø 80 mm

Art.Nr.:  GFZXXX051014
In stock

incl. VAT: 42,36 €
excl. VAT: 35,60 €
Male section - Italian system
Male section - Italian system

5" / hose tail Ø 80 mm

Art.Nr.:  GFZXXX051022
In stock

incl. VAT: 38,56 €
excl. VAT: 32,40 €
Hose connector, untreated
Hose connector, untreated

length 100mm/1.5 mm- Ø 3"- 80mm

Art.Nr.:  GFZXXX041053
In stock

incl. VAT: 6,43 €
excl. VAT: 5,40 €
Hose clamp with clamping jaw type W1
Hose clamp with clamping jaw type W1

92 - 97 mm / width 24 mm / galvanised

Art.Nr.:  NKTXXX311038
In stock

incl. VAT: 2,14 €
excl. VAT: 1,80 €

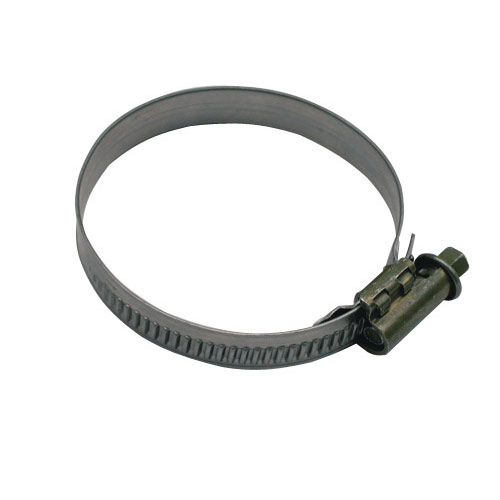

Hose clamp
Hose clamp

70-90 mm / 12 mm

Art.Nr.:  NKTXXX312164
In stock

incl. VAT: 0,83 €
excl. VAT: 0,70 €
