Vacupress Flex suction and pressure hose

internal Ø 120 mm / wall thickness 9.0 mm / PVC / per m

morepic-1
Item #: GFZXXX320016
Weight (kg): 5.43 kg
In stock
Nightdelivery
Incl. VAT: 76,16 €
Excl. VAT:
64,00 €
To the product details To the accessories
Suction and pressure hose Vacupress Flex
Double-layer PVC suction and pressure hose. Galvanized steel spiral embedded in the first layer. Polyester yarn reinforcement between the first and second PVC layer. Smooth inside and outside. Very flexible, even at low temperatures.

Applications:
  • Manure hose
  • Municipal systems
  • Irrigation systems

    Technical data:
  • Temperature range: -25 °C to +60 °C
  • Vacuum: 9 m column of water
  • Abrasion resistance as per ISO 4649: < 160 mm³
  • Internal diameter: 120 mm
  • Wall thickness: 9 mm
  • Operating pressure: 8 bar
  • Bursting pressure: 24 bar
  • Bending radius: 350 mm

Not found yet?

Accessories

Female section - Italian system
Female section - Italian system

5" with connector D120mm

Art.Nr.:  GFZXXX051008
In stock

incl. VAT: 29,27 €
excl. VAT: 24,60 €
Hose connector, untreated
Hose connector, untreated

length 200mm/1.5 mm- Ø 5"- 120mm

Art.Nr.:  GFZXXX051055
In stock

incl. VAT: 9,88 €
excl. VAT: 8,30 €
Hose clamp with clamping jaw type W1
Hose clamp with clamping jaw type W1

131 - 139 mm / width 26 mm / 5" / galvanised

Art.Nr.:  NKTXXX311052
In stock

incl. VAT: 3,77 €
excl. VAT: 3,17 €

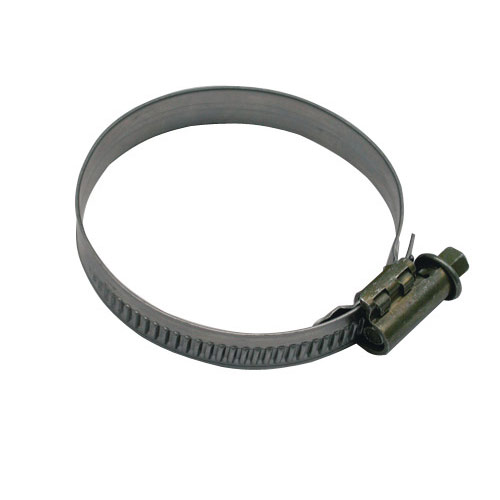

Hose clamp
Hose clamp

110-130 mm / 12 mm

Art.Nr.:  NKTXXX312174
In stock

incl. VAT: 0,60 €
excl. VAT: 0,50 €
