Vacupress Flex suction and pressure hose

internal Ø 60 mm / wall thickness 7.0 mm / PVC / per m

morepic-1
Item #: GFZXXX320010
Weight (kg): 2 kg
In stock
Nightdelivery
Incl. VAT: 40,23 €
Excl. VAT:
33,81 €
To the product details To the accessories
Suction and pressure hose Vacupress Flex
  Double-layer PVC suction and pressure hose. Galvanized steel spiral embedded in the first layer. Polyester yarn reinforcement between the first and second PVC layer. Smooth inside and outside. Very flexible, even at low temperatures.

Applications:

  • Manure hose
  • Municipal systems
  • Irrigation systems

    Technical data:

  • Temperature range: -25 °C to +60 °C
  • Vacuum: 9 m column of water
  • Abrasion resistance as per ISO 4649: < 160 mm³
  • Internal diameter: 60 mm
  • Wall thickness: 7 mm
  • Bending radius: 180 mm
  • Bursting pressure: 40 bar
  • Operating pressure: 12 bar

Not found yet?

Accessories

Male section - Italian system
Male section - Italian system

6" / hose tail Ø 60 mm

Art.Nr.:  GFZXXX061064
In stock

incl. VAT: 53,19 €
excl. VAT: 44,70 €
Female section - Italian system
Female section - Italian system

5" with connector D60mm

Art.Nr.:  GFZXXX051015
In stock

incl. VAT: 41,17 €
excl. VAT: 34,60 €
Male section - Italian system
Male section - Italian system

5" / hose tail Ø 60 mm

Art.Nr.:  GFZXXX051026
In stock

incl. VAT: 37,01 €
excl. VAT: 31,10 €
Hose connector, untreated
Hose connector, untreated

length 100mm/1.5 mm- Ø 2"- 61mm

Art.Nr.:  GFZXXX041050
In stock

incl. VAT: 5,71 €
excl. VAT: 4,80 €

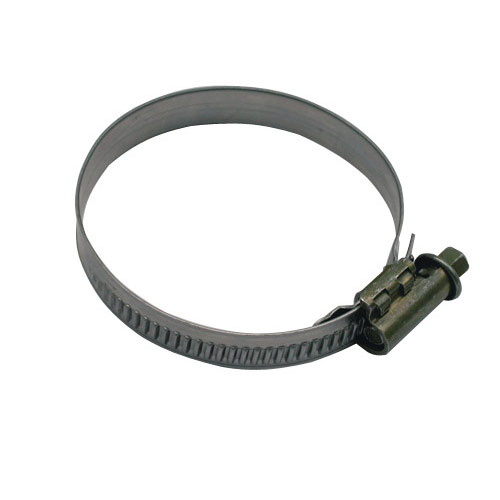

Hose clamp with clamping jaw type W1
