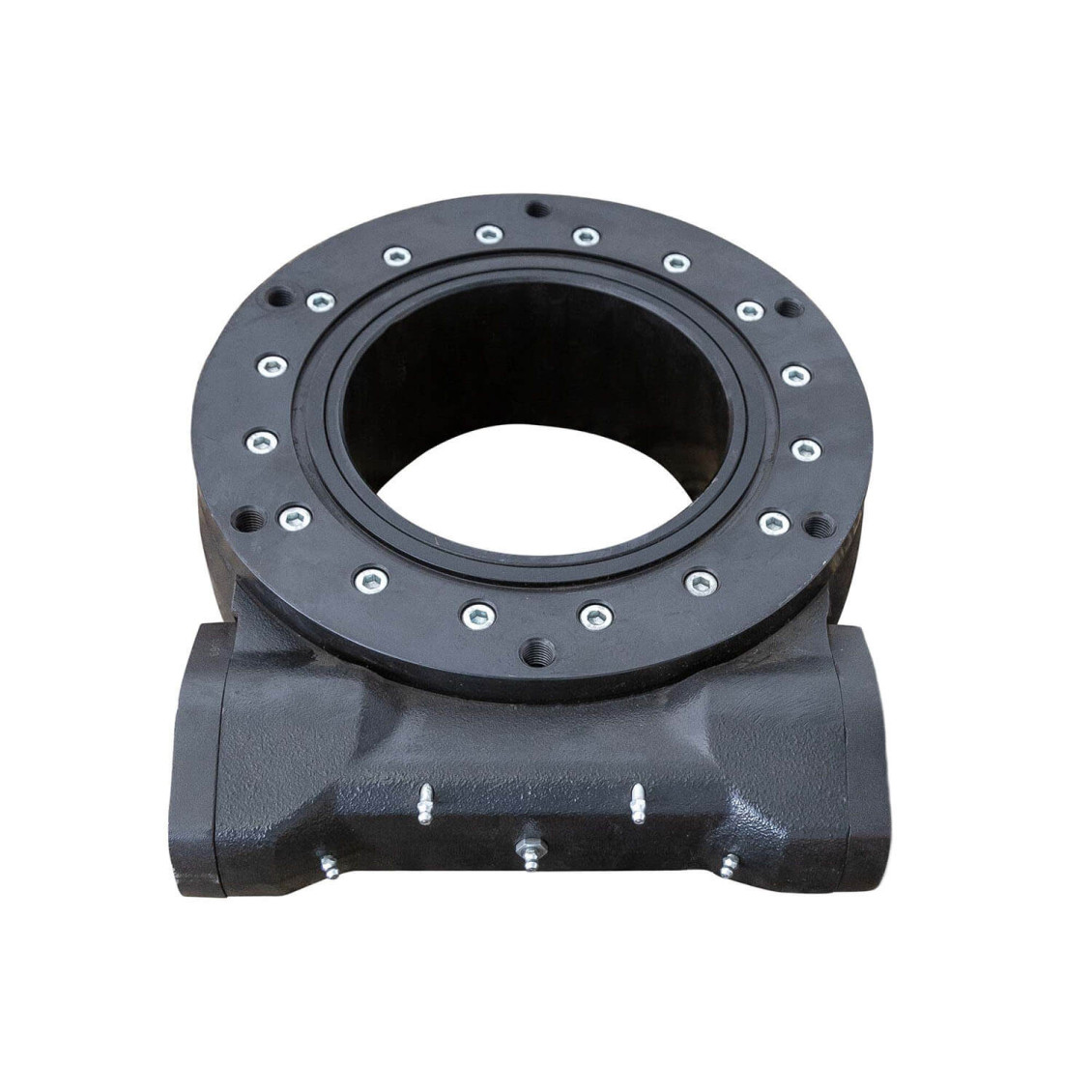

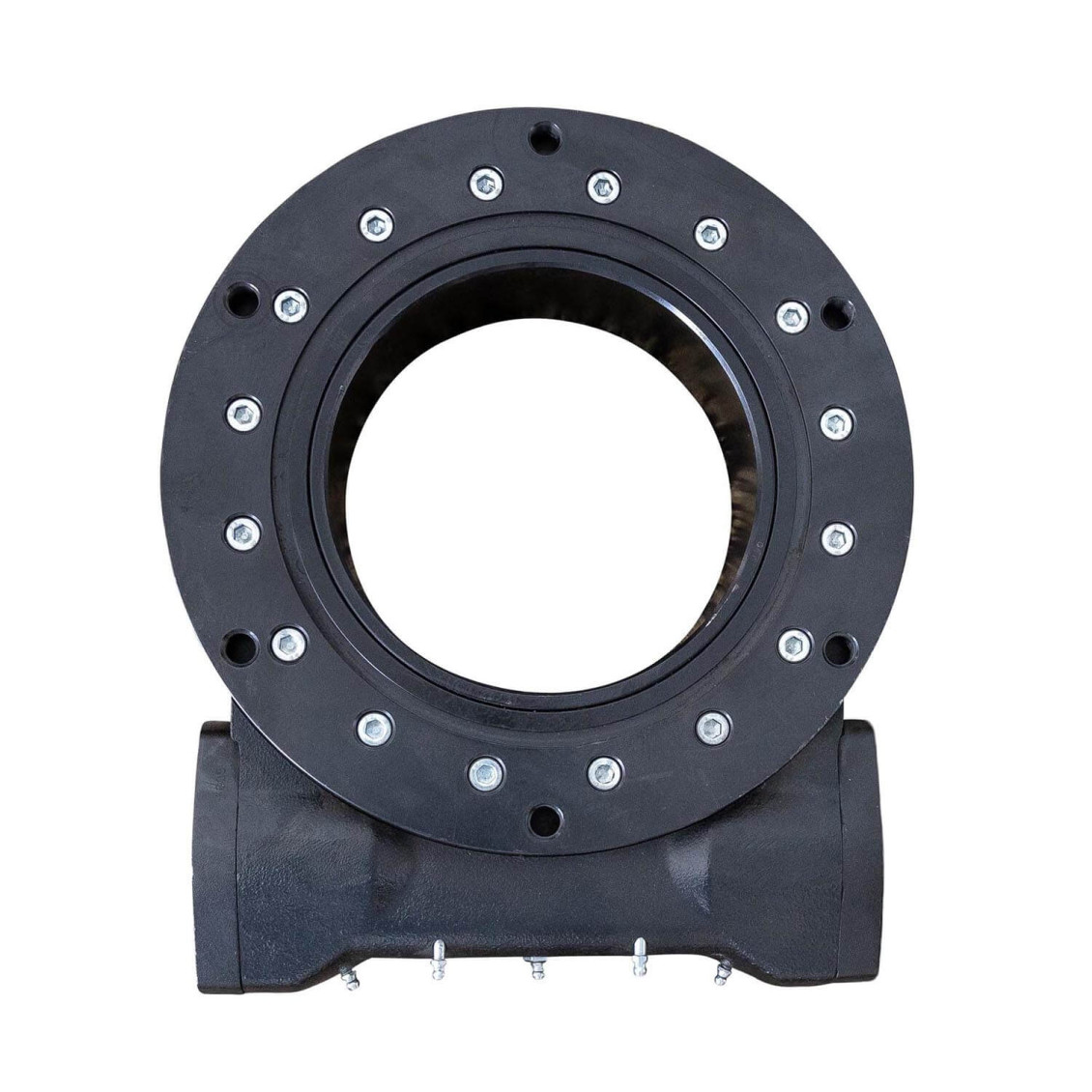

Gear rim / slewing ring META with worm gearing - hydraulic

Item #: GFZXXX980170

200mm / axial load 450 kN/ without oil motor / Ø 25mm

Gear rim / slewing ring META with worm gearing - hydraulic
Product illustrations are exemplary. Subject to change without notice.
Weight: 67 kg
Price
Incl. VAT: 3.147,55 €
Excl. VAT:
2.645,00 €
Quantity
This item is specially configured for you. For the exact delivery time, please contact us.
Forwarding agent - group 1
Description
Swivel head
  • without oil motor
  • waterproof
  • hydraulic
  • also suitable for liquid manure
  • closed housing
  • material: cast iron

Technical data

  • 1:62
  • max. torque: 9100 Nm
  • axial load 450 kN
  • bolt circle: Ø 320 mm
  • inner diameter: Ø 200 mm
  • oil pressure: max. 180 bar
  • weight: approx. 62 kg
