Description

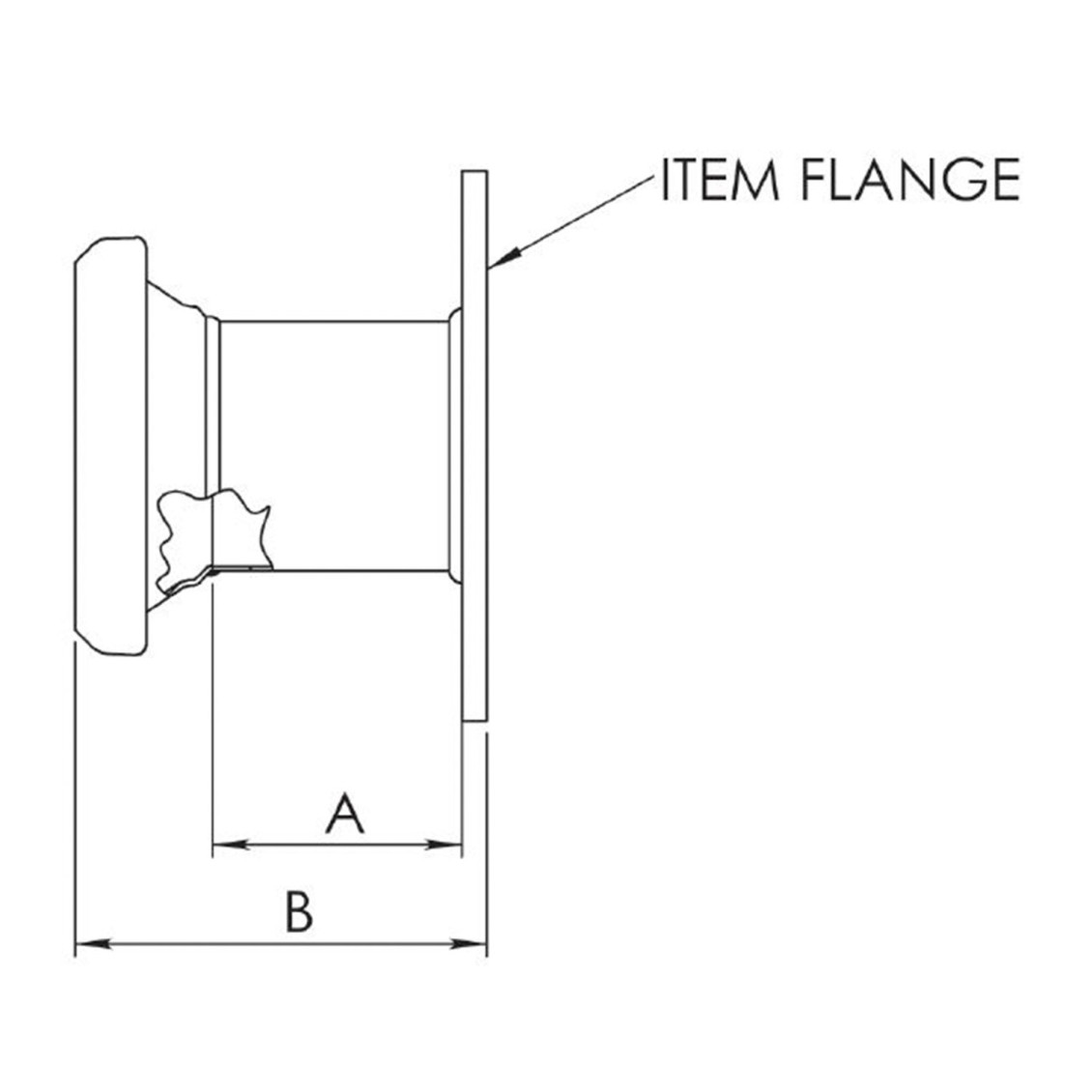

M-section with flange and O-ring »galvanized« - Bauer system
This system has a movable ring on the V-section to which the lever is attached. The M-section is cup-shaped and consists of only one part.
To determine the size of Bauer couplings, measure either the outer diameter of the V-section or the inner diameter of the M-section. The coupling hose connector is measured on the outer or on the inner hose diameter.
.
This system has a movable ring on the V-section to which the lever is attached. The M-section is cup-shaped and consists of only one part.
To determine the size of Bauer couplings, measure either the outer diameter of the V-section or the inner diameter of the M-section. The coupling hose connector is measured on the outer or on the inner hose diameter.
- Size: 4"
- Inner dimension: 144 mm
- Hose size: 108 mm
- Hole distance: 150 mm
.
