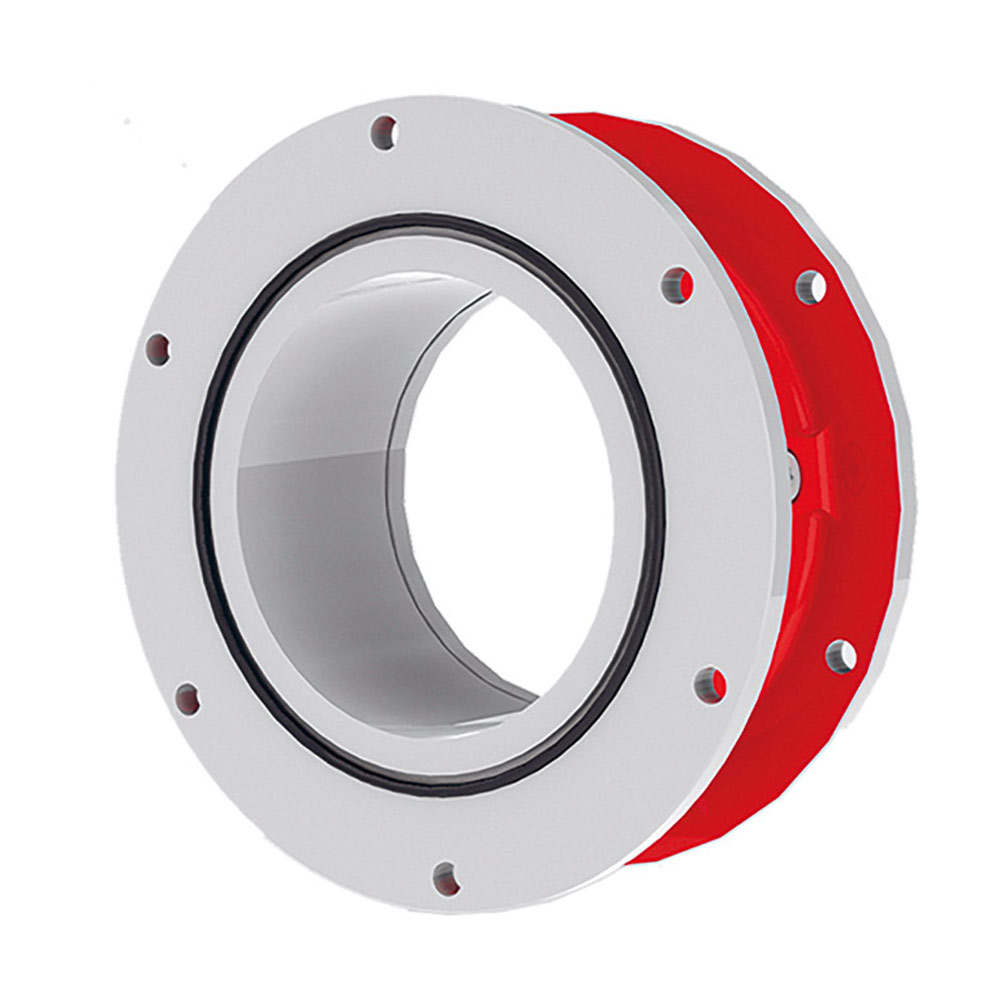

Swivel joint 4"

Ø 100 / with sealing

morepic-1
Item #: GFZXXX980151
Weight (kg): 16.2 kg
In stock
Standard shipping
Incl. VAT: 328,44 €
Excl. VAT:
276,00 €
To the product details To the accessories To the spare parts
Pivot joint with seal

  • Material: Cast iron
  • Operating pressure: 6 bar
  • Inner diameter: 100 mm (suitable for 4" lines)
  • Hole distance: 220 mm
  • Rotation 360
  • Net weight: approx. 16.4 kg
  • Matching flange is not included with delivery - please order separately
  • The O-ring seal is included with delivery
  • Delivery incl. 2x externally located O-rings

    Load capacity:
  • Distance: 1 m    -   140 kg
  • Distance: 2 m    -     75 kg
  • Distance: 3 m    -     50 kg
  • Distance: 4 m    -     38 kg
  • Distance: 5 m    -     31 kg
