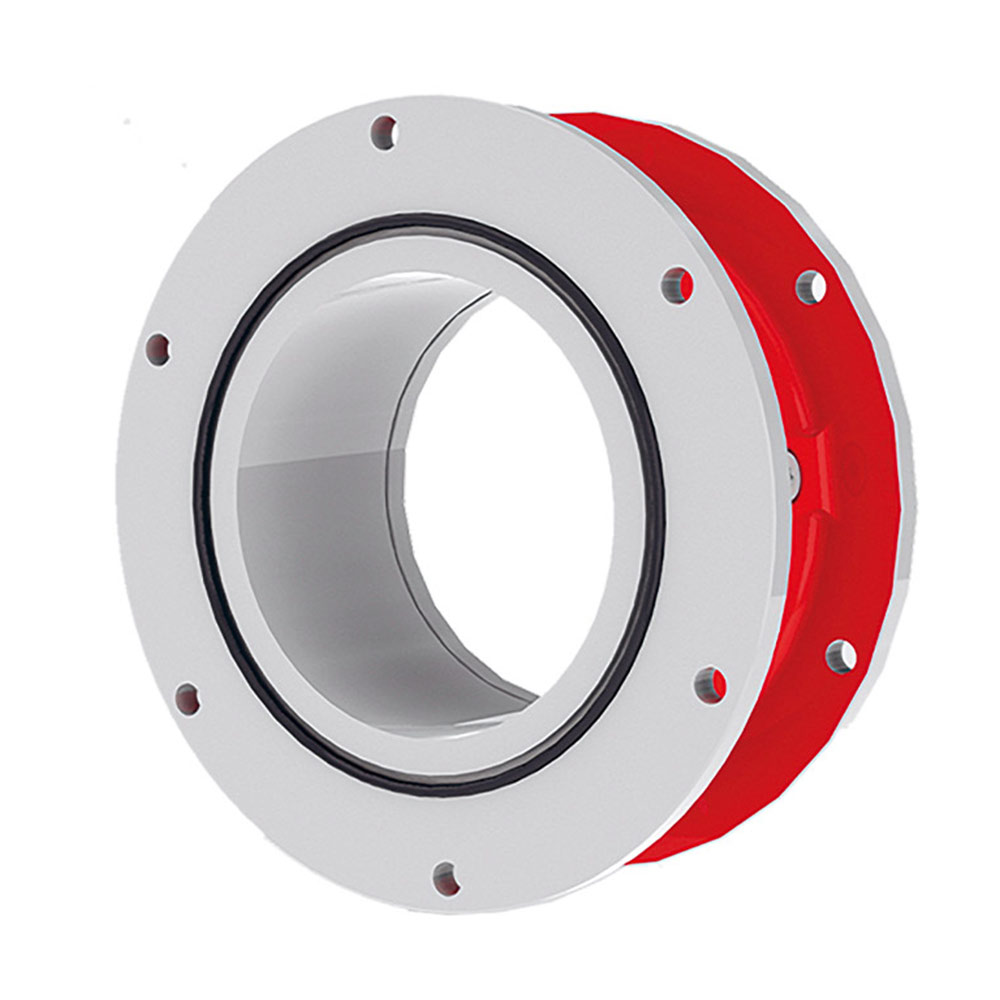

Swivel joint 12"

Item #: GFZXXX980149

Ø300 / with sealing

Product illustrations are exemplary. Subject to change without notice.
Price
Incl. VAT: 1.818,74
Excl. VAT:
1.528,35
Quantity
This item is specially configured for you. For the exact delivery time, please contact us.
Forwarding agent - group 1
Description
Pivot joint with seal

  • Material: Cast iron
  • Operating pressure: 6 bar Inner diameter: 300 mm (suitable for 12" lines)
  • Hole distance: 431,5 mm
  • Rotation 360
  • Net weight: approx. 45.6 kg
  • Matching flange is not included with delivery - please order separately
  • The O-ring seal is included with delivery
  • Delivery incl. 2x externally located O-rings



Load capacity:

  • Distance: 1 m    -   380 kg
  • Distance: 2 m    -   200 kg
  • Distance: 3 m    -    136 kg
  • Distance: 4 m    -    104 kg
  • Distance: 5 m    -     83 kg
