Hydraulic attachment actuation

Item #: HGBFLM000002

Type II/S

Product illustrations are exemplary. Subject to change without notice.
Price
Incl. VAT: 1.011,50
Excl. VAT:
850,00
piece
This item is specially configured for you. For the exact delivery time, please contact us.
Forwarding agent - group 1
Description

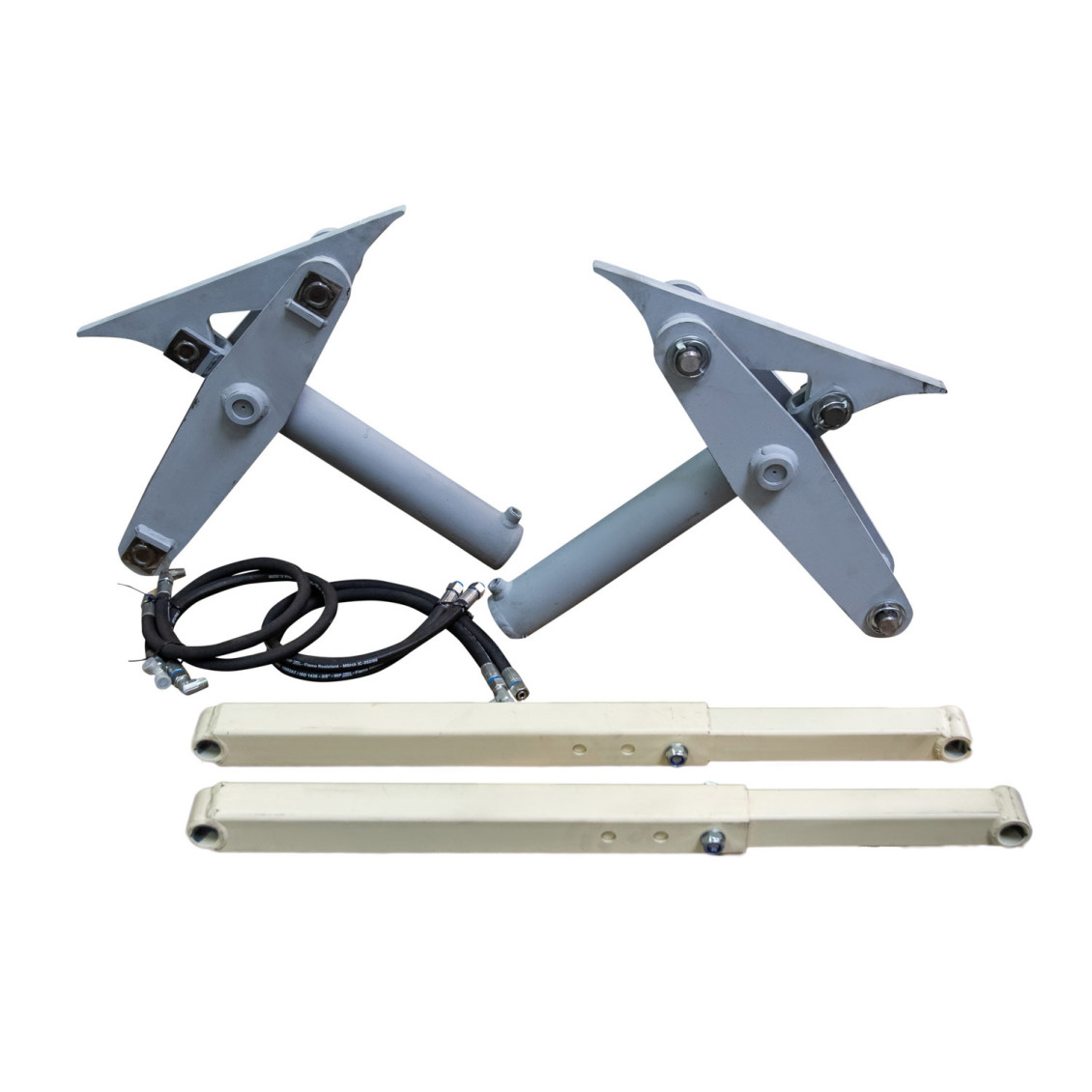

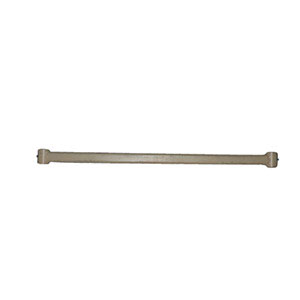

  Hydraulic attachment actuation Type II/S (two-cylinder version) with adjustable push rod, 3 adjustment options, 100 mm each
Suitable for all front loader types

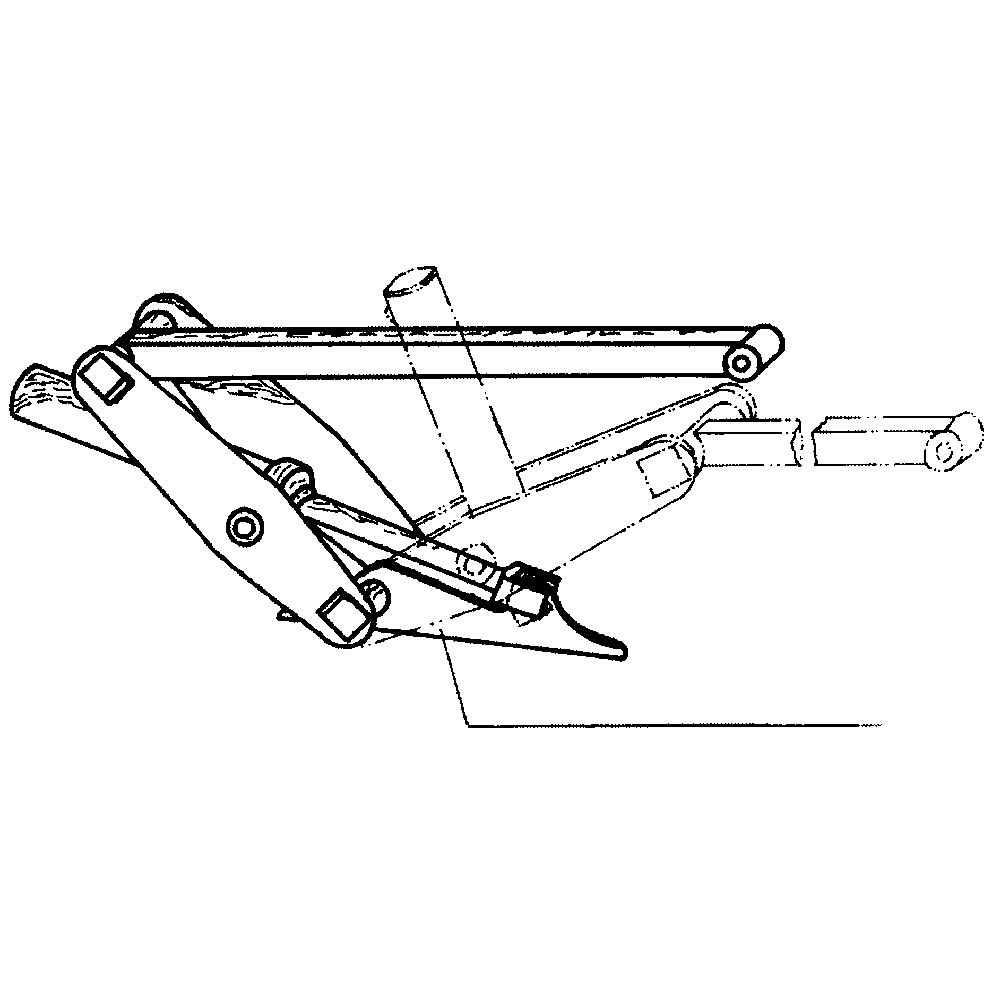

  • Extremely long stroke of 850 mm allows a tipping angle of up to 180° (see illustration a and b)
  • Ideal force progression due to optimised cylinder deflection (see Fig. c)
  • The stronger, larger side of the piston draws the loaded attachment back with about 3.6 t of traction force
  • The weaker, smaller side of the piston presses the attachment down until it dumps its contents (no great force is needed)
  • A quick release valve is not needed as the smaller piston side (which requires less oil) is responsible for unloading
  • Very sturdy and compact construction. All bearings are manufactured with 30 mm bolts
  • They have DU bush bearings (self-lubricating)
  • Hydraulic hoses and screw fittings included, up to the centre of the front loader
