»Variant« front and rear loader

Name: »Variant« front and rear loader
SKU: FHLFLI000000
Price: 3990 EUR
Availability: InStock

Item #: FHLFLI000000

galvanised

Product illustrations are exemplary. Subject to change without notice.

»Variant« front and rear loader

Item #: FHLFLI000000

galvanised

Weight: 390 kg

Price

Incl. VAT: 4.748,10 €

Excl. VAT:

3.990,00 €

piece

In stock

Forwarding agent - group 2

Description

»Variant« front and rear loader
Ideal for transporting and loading bulk goods and for stacking bales Technical details:

Ideal for transporting and loading bulk goods and for stacking bales
Parallel motion
Mounting width for lower link arm provided for cat. II
Recommended bucket width: up to max. 2000 mm
Lifting capacity: 1500 kg
Lift height: Approx. 3800 mm
Front power required: 100 HP
Rear power required: 60 HP
Incl. hydraulic connectors and hoses
1 double-acting connection and 1 single-acting connection required

Features:

Can be attached to front or rear hydraulics
Euronorm mounting on device side and three-point hitch on tractor side
Pivot points with plain bearing bushings, lubricatable
Quick and easy attachment to tractor

Find similar articles

Attachment Line /

Bale grabs

Documents

data sheet

FHLFLI000000_D_EN.pdf

Media

Replacement items

Accessory items

Accessories

Third control circuit (surcharge)

for Variant front and rear loader

Art-Nr.: FHLFLI900026

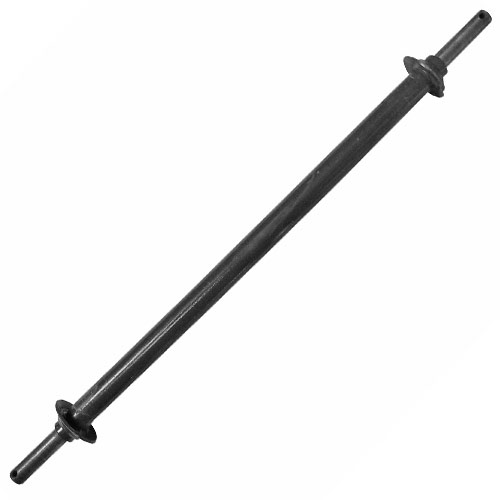

Kupplerstange für Front- und Hecklader / 4...

Einbaulänge LA 1010mm / Kat II / Ø Splint 10mm

Art-Nr.: FHLFLM900000

Replacement parts

Cylinder for front and rear loader swing arm

60/40/650

Art-Nr.: FHLFLM900015

Cylinder for Front and rear loader actuation

90/30/375/extended stroke

Art-Nr.: FHLFLM900025

Art-Nr.: HZBXXX200034

Yellow / construction size 3

Art-Nr.: HZBXXX920035

Art-Nr.: HZBXXX920032

Angle - swivelling screw fitting

SWVE R3/8'' - 12 L

Art-Nr.: HVSXXX200023

thread: 3/8"/ 45 l/min

Art-Nr.: HZBXXX800200

Art-Nr.: HSLXXX030024

Art-Nr.: HSLXXX030025

Art-Nr.: HVSXXX600022

Art-Nr.: HSLXXX030001

Art-Nr.: HSLXXX030030

Art-Nr.: HSLXXX030010

Straight screw-in connection

GE R3/8'' - 12L

Art-Nr.: HVSXXX100016

Art-Nr.: HSLXXX030018

Sticker "Risk of crushing/hand injury" ...

approx. length= 135 mm / width= 60 mm, strongly adhesive / yellow-black

Art-Nr.: EBMXXX200097

Sticker "Presence in the danger area" ...

110x50 / yellow background - black lettering

Art-Nr.: EBMXXX200091

Art-Nr.: EBMXXX200079

max. pressure of work 180 bar

Art-Nr.: EBMXXX200034

Sticker »Fliegl« red - standard

140 x 38 mm

Art-Nr.: SBWXXX850105

2.0 x 24.0 x 139 mm / galvanised / for FHL lever locking

Art-Nr.: NKTXXX365065

for intermediate adapter

Art-Nr.: ZADFLM900010

Art-Nr.: FHLFLI000200

for Variant front and rear loader

Art-Nr.: FHLFLI000201

for front and rearloader "Variant"

Art-Nr.: FHLFLI000202

Art-Nr.: FHLFLI000203

Thread: 1/2"/volume flow: 40 l/min./pressure range: 40-250 bar/with counter nut

Art-Nr.: HZBXXX800041

Hydraulikrohr verzinkt DIN 2391

15 x 2.0

Art-Nr.: HROXXX100016

Damper slide for hydraulic cylinder

Do=11,90mm / di=2,0mm / 1,0mm strong

Art-Nr.: HZBXXX800501
