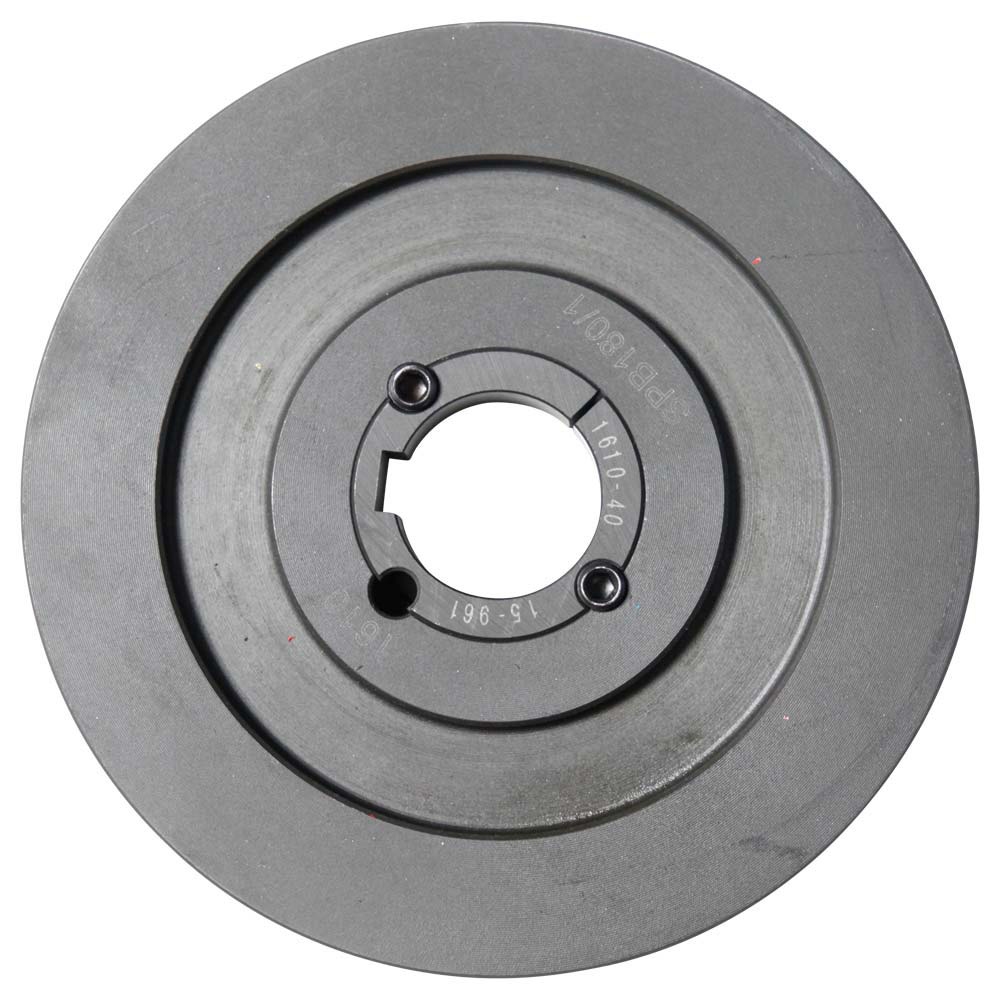

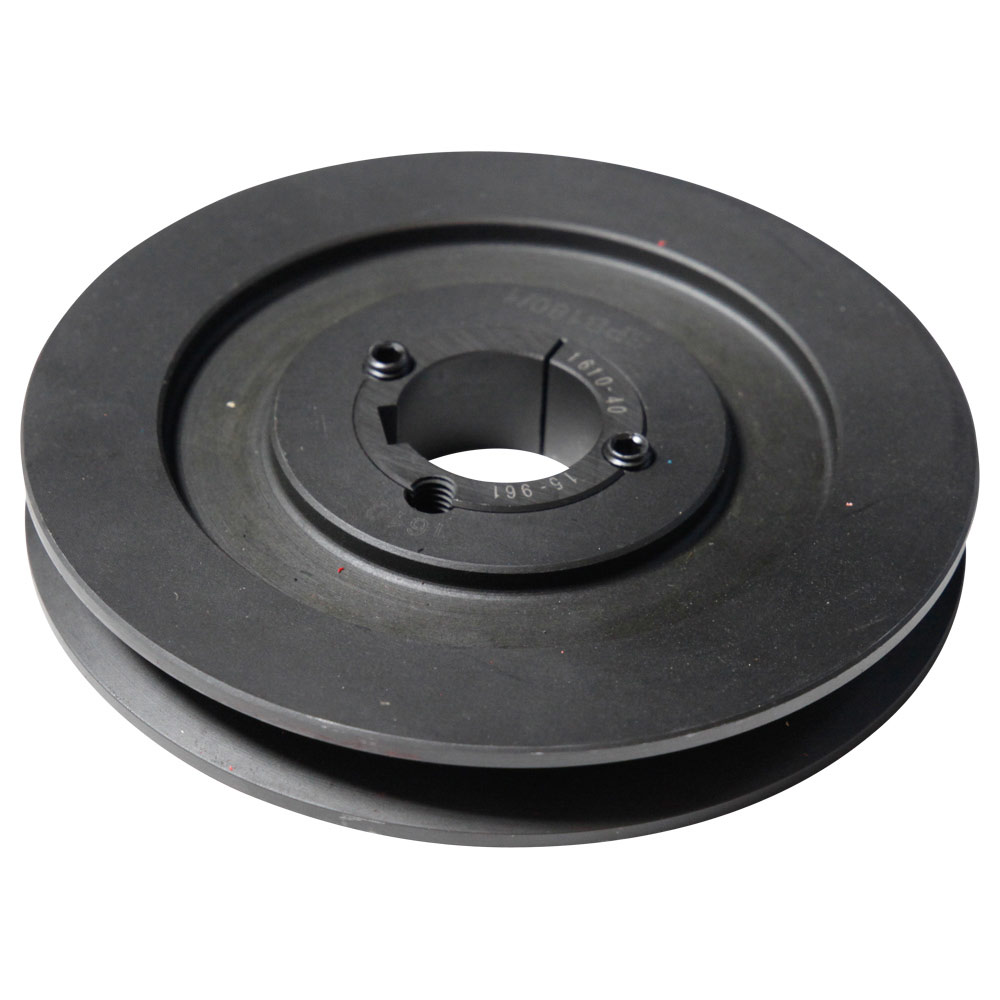

V-belt pulley - one groove

Item #: ASHFLM910060

SPW180-01 / Ø 20 mm / W 25 mm / 17 x 13 V-belt

V-belt pulley - one groove
Product illustrations are exemplary. Subject to change without notice.
Weight: 3.042 kg
Price
Incl. VAT: 59,86 €
Excl. VAT:
50,30 €
piece
In stock
Standard shipping
Description
  • Produced according to ISO 4183 and DIN 2211-3
  • The material, which is used for the production, is greay cast iron EN-GJL-200 UNI EN 1561, and all V-belt discs are phosphated after processing.
  • All V-belt discs are statically balanced and for a peripheric working speed up to 35 min/s.
Technical data:
  • Suitable for the V-belts 17 x 13
  • Type SPB180-01
  • Bushing: 1610
  • Diameter (O): 187 mm
  • Groove width (F): 25 mm
  • Total width (L): 25 mm
  • Hub (N): 90 mm
