Tipping bucket for forklift carrier frame

Name: Tipping bucket for forklift carrier frame
SKU: GSPFLM000102V
Price: 4000 EUR
Availability: InStock

Item #: GSPFLM000102V

1800 mm / forklift mounting

Tipping bucket for forklift carrier frame

Product illustrations are exemplary. Subject to change without notice.

Tipping bucket for forklift carrier frame

Item #: GSPFLM000102V

1800 mm / forklift mounting

Weight: 510 kg

Price

Incl. VAT: 4.760,00 €

Excl. VAT:

4.000,00 €

piece

In stock

Forwarding agent - group 4

Description

Tipper bucket for forklift carrier frame
For attachment to forklift mounting Technical details:

Comes as standard with FEM 2 mounting
For forklift trucks weighing up to 6 t
Scraper rail made of wear-resistant high-tensile steel (HB 500, 150 x 16 mm)
Optional: Available with FEM 3 mounting
1 double-acting connection required
2 double-acting cylinders as standard

Features:

Sturdy construction
For fixing to the existing carrier plate
Reinforcement on bucket base
High pull-in force with two heavy-duty cylinders
Favourable centre of gravity and pivot point, especially close to the forklift mast

Find similar articles

Attachment Line /

Buckets

Replacement items

Accessory items

Accessories

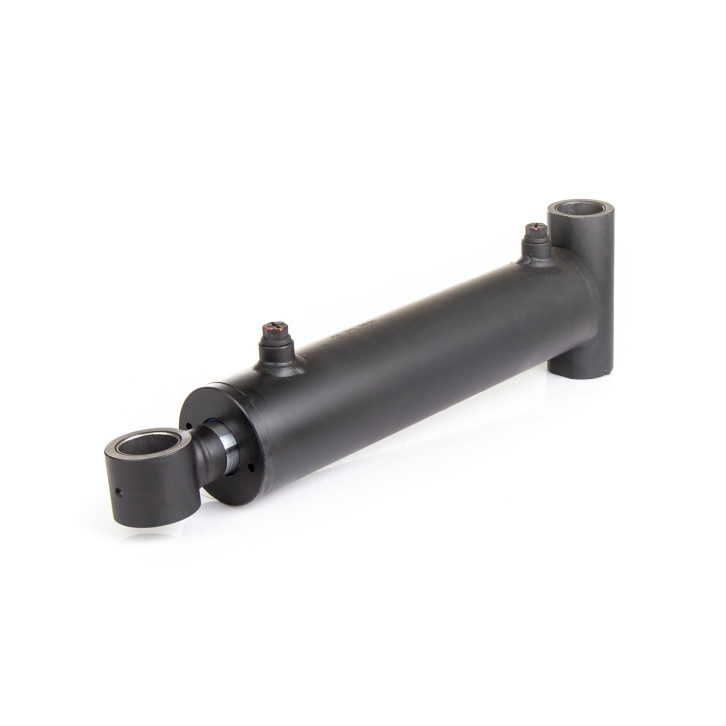

Cylinder for forklift-tipping bucket (GSP)

80/40/250 / 2 weld-on bushings Ø 40.1 mm

Art-Nr.: HZLXXX100135

Replacement parts

Hydraulic hose

NPS 10/1500

Art-Nr.: HSLXXX030009

Art-Nr.: HSLXXX030004

Art-Nr.: HSLXXX030018

Art-Nr.: HZBXXX200034

Straight screw-in connection

GE R3/8'' - 12L

Art-Nr.: HVSXXX100016

Cover for double clamp

D 18 ( for hydraulic hose)

Art-Nr.: NKTXXX931018

for SVK plug construciton size 3

Art-Nr.: HZBXXX920030

for SVK plug construction size 3

Art-Nr.: HZBXXX920016

Cylinder for forklift-tipping bucket (GSP)

80/40/250 / 2 weld-on bushings Ø 40.1 mm

Art-Nr.: HZLXXX100135

Tapered grease nipple DIN 71412

H1 / M8 x 1 / straight

Art-Nr.: NKTXXX100301

galvanised / incl. screws / double

Art-Nr.: NKTXXX100380

Art-Nr.: HVSXXX600022

Sealing plug for round tube

Ø 42.0 mm / tube wall thickness 0.8 - 2.5 mm / lamella plug

Art-Nr.: NKTXXX610334

Art-Nr.: NKTXXX600032

Art-Nr.: NKTXXX600079

150 mm / screw-on / for GSP and HKE

Art-Nr.: STGFLM900013

Hexagon screw DIN 933

M 12 x 30 / 8.8 / galvanised

Art-Nr.: NKTXXX190076

Art-Nr.: NKTXXX191512

Hexagon screw DIN 933

M 20 x 55 / 8.8 / galvanised

Art-Nr.: NKTXXX190526

Spring washer bent up DIN 127 A

Ø 20 mm / galvanised

Art-Nr.: NKTXXX110020

Ø 21 mm / without chamfer / galvanised

Art-Nr.: NKTXXX110118

Spring washer bent up DIN 127 A

Ø 10 mm / galvanised

Art-Nr.: NKTXXX110010

Hexagon screw DIN 933

M 10 x 25 / 8.8 / galvanised

Art-Nr.: NKTXXX190038

M 8 / 10.9 / galvanised

Art-Nr.: NKTXXX191077

Hexagon screw DIN 931

M 8 x 55 / 8.8 / galvanised

Art-Nr.: NKTXXX190016

Spring washer bent up DIN 127 A

Ø 12 mm / galvanised

Art-Nr.: NKTXXX110012

Sticker »Fliegl« red - reflective

400 x 109 mm

Art-Nr.: SBWXXX850050

Sticker »Fliegl« red - standard

140 x 38 mm

Art-Nr.: SBWXXX850105

Art-Nr.: EBMXXX200083

Art-Nr.: EBMXXX200079

Sticker "Presence in the danger area" ...

110x50 / yellow background - black lettering

Art-Nr.: EBMXXX200091

max. pressure of work 180 bar

Art-Nr.: EBMXXX200034

Sticker "Risk of crushing/hand injury" ...

approx. length= 135 mm / width= 60 mm, strongly adhesive / yellow-black

Art-Nr.: EBMXXX200097
