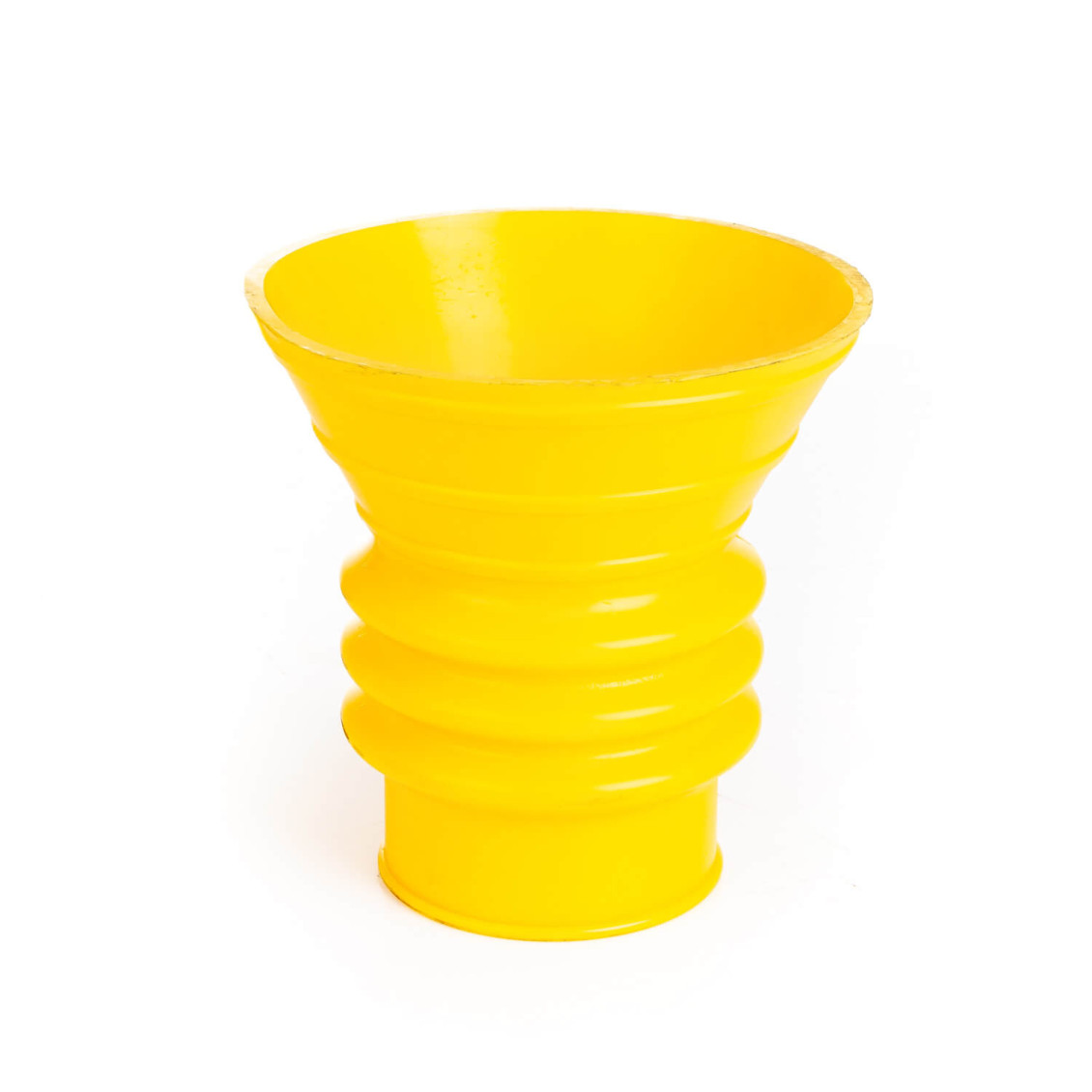

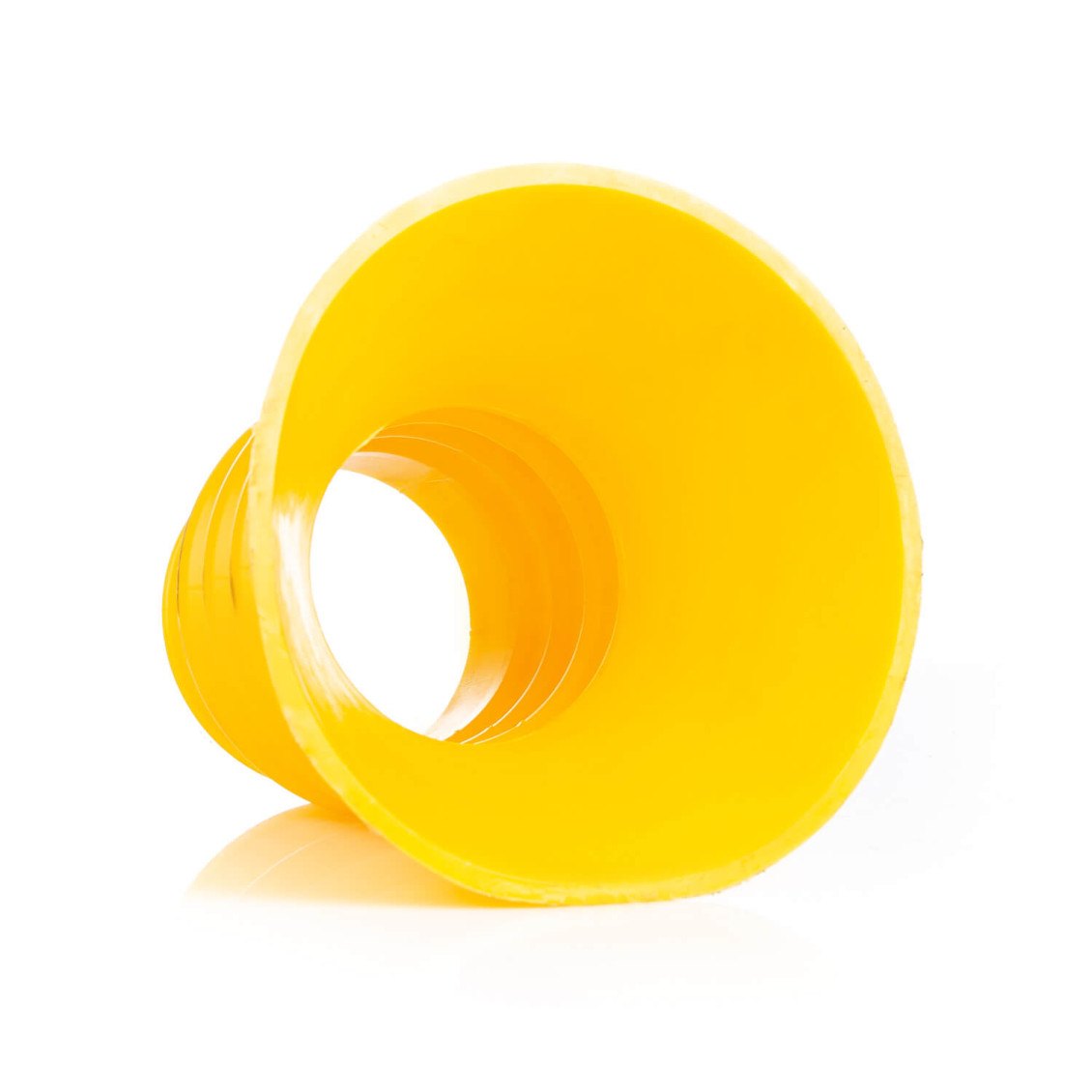

Suction funnel for docking device

Suction head for docking station - Art.no. = GFZXXX800116
6" / Ø: A=326mm/I=168mm - L=390mm / polyurethane 75° shore

The Fliegl suction head is mounted to all docking stations and devices. The suction heads are made of polyurethane with a shore of 75°.
They are also used e.g. for transport vehicles such as tank semi-trailers, tank trailers with front wagons or vacuum tank trailers and field edge containers.

  Technical details:
» Outer diameter: 326 mm
» Inner diameter: 168 mm
» Length: 390 mm
» Colour: yellow
» Hardness : 75 A - DIN ISO 7619-1
» Thickness (g/cm³): 1,21 - DIN EN ISO 1183-A
» Elasticity (%): 40 - DIN 53512
» Tear resistance (N/mm²): 40 - DIN ISO 34-1 Bb
» Tear strength (N/mm²) 37 - DIN 53504-S2
» Ultimate elongation (%): 600 - DIN 53504-S2
» Abrasion value (mm³): 15 - DIN EN 4649 A
» Max. surface pressure (N/mm²): 4,5 - static
» Application temperature (°C): -25°C bis 85°C
» DVR 23°C/72h (%): 20 - DIN ISO 815

  Scope of delivery:
» Suction head 6"
» Clamping jaw 6" - 175-187 mm
