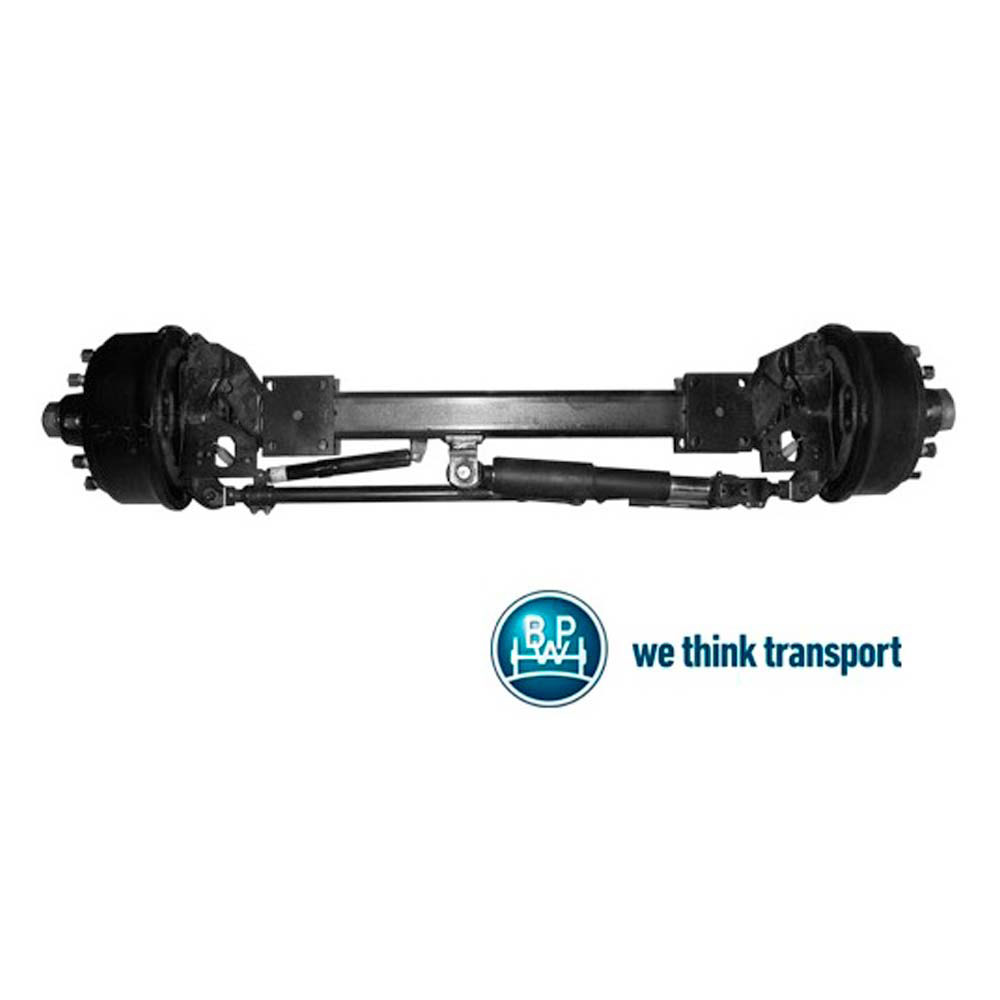

Steering axle BPW 410x180 / self-steering / 10-hole/SC 900mm/12000kg

Name: Steering axle BPW 410x180 / self-steering / 10-hole/SC 900mm/12000kg
SKU: ACHBPW103013
Price: 5575.5 EUR
Availability: InStock

Item #: ACHBPW103013

track 2150mm/SA 13°/centre/square 150mm/26.72.449.892/type SAHLL 12010

Steering axle BPW 410x180 / self-steering / 10-hole/SC 900mm/12000kg

Product illustrations are exemplary. Subject to change without notice.

Steering axle BPW 410x180 / self-steering / 10-hole/SC 900mm/12000kg

Item #: ACHBPW103013

track 2150mm/SA 13°/centre/square 150mm/26.72.449.892/type SAHLL 12010

Weight: 550 kg

Price

Incl. VAT: 6.634,85 €

Excl. VAT:

5.575,50 €

Quantity

This item is specially configured for you. For the exact delivery time, please contact us.

Forwarding agent - group 3

Replacement items
Accessory items

Replacement items

Accessory items

Accessories

Axle plate loose for FAD

HS - 125x175 / Ø-30 / t-20

Art-Nr.: FNTXXX030149

Replacement parts

steering axle

Art-Nr.: ACHBPW940513

Hexagon nut M 24 DIN 936 17H galvanised

BPW 410x120+410x180/SP list 122/part no. 02.5205.31.24/GSLA11010/GSHLL12010

Art-Nr.: ACHBPW940324

Bushing for steering knuckle/ext. Ø 65.0 m...

BPW 410x180/SP list 135/part no. 03.112.76.08.0 / GSHLL12010 - FL 4118

Art-Nr.: ACHBPW930135

Bushing for steering knuckle/ext. Ø 65.0 m...

BPW 410x180/SP list 135A/part no. 03.113.62.13.0 / GSHLL12010-FL 4118

Art-Nr.: ACHBPW940727

Bushing / ext. Ø= 46.0 mm/int. Ø= 42.0 mm/...

BPW 400-410x120+180/ET no. 3/40A/136/220A/T no. 03.112.44.34.0/9010/11010/12010

Art-Nr.: ACHBPW940170

Bushing for steering knuckle/ext. Ø 46.0 m...

BPW 410x180/SP list 137/part no. 03.112.44.31.0 / GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940168

Pin for axle leg / Ø= 36.0 mm / length= 12...

BPW 410x180/SP list 138/part no. 03.086.51.54.0 /GSHLL12010-FL 4118

Art-Nr.: ACHBPW940467

Clamping sleeve for steering axle 410x120 ...

Pos. 199 f. GSLA11010 Nr. 02.6006.95.90

Art-Nr.: ACHBPW940084

HOOK SPRING RING D=33/30 C-CLAMP

Pos. 222 f. GSLA11010 Nr. 03.188.02.02.0

Art-Nr.: ACHBPW940184

BPW 410x180/SP list 150 / part no. 03.125.07.10.1 / GSHLL 12010-FL 4118

Art-Nr.: ACHBPW940059

Thrust washer bottom . steering bolt/xt.Ø ...

BPW 410x120+410x180 / SP list 151/195 / T no. 03.128.05.06.0/GS11010/12010

Art-Nr.: ACHBPW940440

Steering pin incl. 2 bushings (parts no. 1...

BPW 410x180 / SP list 152 / part no. 09.240.60.31.0 / GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940201

Disc for steering pin / ext. Ø= 100.00 mm ...

BPW 410x180 / SP list 153 / part no. 03.320.66.04.0 / GSHLL 12010-FL 4118

Art-Nr.: ACHBPW940241

SCREW M10X25 TENSIL.GEO.

Art-Nr.: ACHBPW940027

ADAPTER SLEEVE W.ISO 8752 7X 28-ST

Pos. 199 f. GSLA11010 Nr. 02.6016.01.90

Art-Nr.: ACHBPW940088

GREASE NIPPLE BM10X1 71412

Pos. 134 f. GSLA11010 Nr. 02.6802.06.50

Art-Nr.: ACHBPW940104

BPW 400x80 / ET-Liste Nr. 48A / Teile-Nr. 02.3505.20.00

Art-Nr.: ACHBPW940004

Sealing ring for steering pin

ext. Ø= 70 mm / I-Ø= 59/62 mm / t= 3/5 mm / BPW 410x180 / SP list 159 / Part no.

Art-Nr.: ACHBPW940076

Pos. 160 f. GSHLL12010 Nr.05.189.54.87.0

Art-Nr.: ACHBPW940346

Holder / base plate - right

BPW 410x180 /SP list 161/part no. 05.189.54.88.0 /GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940348

HEXAGON SCREW M14X40 DIN933 10.9

BPW 410x180 / Nr. 162 / Nr. 02.5026.16.10 / GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940015

Spring washer for base plate/A 14/I-Ø= 14....

BPW 410x180/SP list 163/part no. 02.5601.14.92/GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940058

Track rod / installation length 1540 mm (e...

BPW 410x180/SP list 170/part no. 05.246.43.13.0 / GSHLL12010 - FL 4118

Art-Nr.: ACHBPW940414

Pos. 171 f. GSLA11010 Nr. 03.179.06.13.0

Art-Nr.: ACHBPW940342

Clamping head with clockwise thread and st...

BPW 410x120+410x180/SP list 172/part no. 05.353.68.26.0/GS11010/12010

Art-Nr.: ACHBPW940252

Tensioning head with anti-clockwise thread...

BPW 410x120+410x180/SP list 173/part no. 05.353.68.27.0/GS11010/12010

Art-Nr.: ACHBPW940254

Clamp for threaded sleeve for track rod (t...

BPW 410x120+410x180 / SP list 174 / part no. 02.3507.25.00/GS11010/12010

Art-Nr.: ACHBPW940434

HEXAGON SCREW M12X1,5X60 960 8.8DAC

BPW 410x120+410x180 / Nr. 175 / Nr. 02.5029.35.80/GS11010/12010

Art-Nr.: ACHBPW940022

LOCK NUT VM12X1,5 8 DAC

Pos. 176 f. GSLA11010 Nr. 02.5220.15.82

Art-Nr.: ACHBPW940038

Bushing for track rod /ext. Ø 64.4 mm /int...

BPW 410x120+410x180/SP list 177/part no. 05.113.92.04.0/GS11010/12010

Art-Nr.: ACHBPW940290

Threaded bolt eccentric Ø-25/35 mm / lengt...

BPW 410x120+410x180/SP list 180/part no. 03.178.51.15.0/GS11010/12010

Art-Nr.: ACHBPW940181

Disc for threaded bolt / ext. Ø= 70.0 mm /...

BPW 410x120+410x180 / SP list 181 / part no. 03.320.24.05.0/GS11010/12010

Art-Nr.: ACHBPW940244

Locknut for threaded bolt / M 24 / H= 24 m...

BPW 410x120+410x180 / SP list 182 / part no. 02.5220.74.12/GS11010/12010

Art-Nr.: ACHBPW940042

Tensioning piece f. threaded bolt/ext. Ø 5...

BPW 410x120+410x180 / SP list 183 / part no. 03.372.50.09.0/GS11010/12010

Art-Nr.: ACHBPW940262

Locknut / M 20 mm / H= 20 mm / grade= 8.8 ...

BPW 410x120+410x180 / SP list 184 / part no. 02.5220.50.12/GS11010/12010

Art-Nr.: ACHBPW940040

Brake shoe set FL 4118

BPW 410x180/SP list 189/part no. 09.803.67.17.0 /GS 12010-FL 4118

Art-Nr.: ACHBPW950014

GRP brake shoe T090 with pad

BPW 410x180/SP list 73/190/part no. 05.091.29.97.0 /GS 12010-FL 4118

Art-Nr.: ACHBPW940286

Rivet / ext. Ø 8 mm / length 15 mm / DIN 7...

BPW 410x120-410x180/SP list 80/191/part no. 02.5805.80.35/GS11010/12010

Art-Nr.: ACHBPW940082

Pin / ext. Ø= 26.0 mm / length = 58.5 mm

BPW 410x120-410x180/SP list 77/192/part no.03.084.75.24.0/GS11010/12010

Art-Nr.: ACHBPW940140

Brake pad for riveting

BPW 410x180/SP list 79/193/part no. 03.092.29.75.0 /GS 12010 - FL 4118

Art-Nr.: ACHBPW940152

Pos. 255 f. FL4112 Nr. 03.310.70.15.0

Art-Nr.: ACHBPW940232

ROLLER WITH BUSH, WITHOUT BOLT

Pos. 250 f. FL4112 Nr. 05.331.44.02.0

Art-Nr.: ACHBPW940446

Tension spring / ext. Ø= 29.0 mm/coil Ø= 5...

BPW 410x120-410x180/SP list 82/196/part no. 05.397.58.03.0/GS11010/12010

Art-Nr.: ACHBPW940314

RETURN SPRING HOOK CURVED

Pos. 197 f. FL4112 Nr. 03.397.33.10.0

Art-Nr.: ACHBPW940274

RETURN SPRING EYE CURVED

Pos. 198 f. FL4112 Nr. 03.397.33.11.0

Art-Nr.: ACHBPW940276

410x180 / 10 -hole / SP no. 86/200/part no. 03.106.91.07.0 /GS 12010-FL 4118

Art-Nr.: ACHBPW940162

Hub / 10-hole / bearing 33118/33213 / bolt...

BPW 410x180/SP list 84/201/part no. 03.271.54.94.0 / GS 12010-FL 4118

Art-Nr.: ACHBPW940344

M22 x 1.5 mm / length 80 mm/400 x 80-410 x 180/SP list 91/202/T no. 03.296.33.11

Art-Nr.: ACHBPW940224

BPW wheel stud incl. nut and spring washer

M22 x 1.5 mm/length 80 mm/400 x 80-410 x 180/SP list 90/92/202A/T no. 09.803.80.

Art-Nr.: ACHBPW950114
