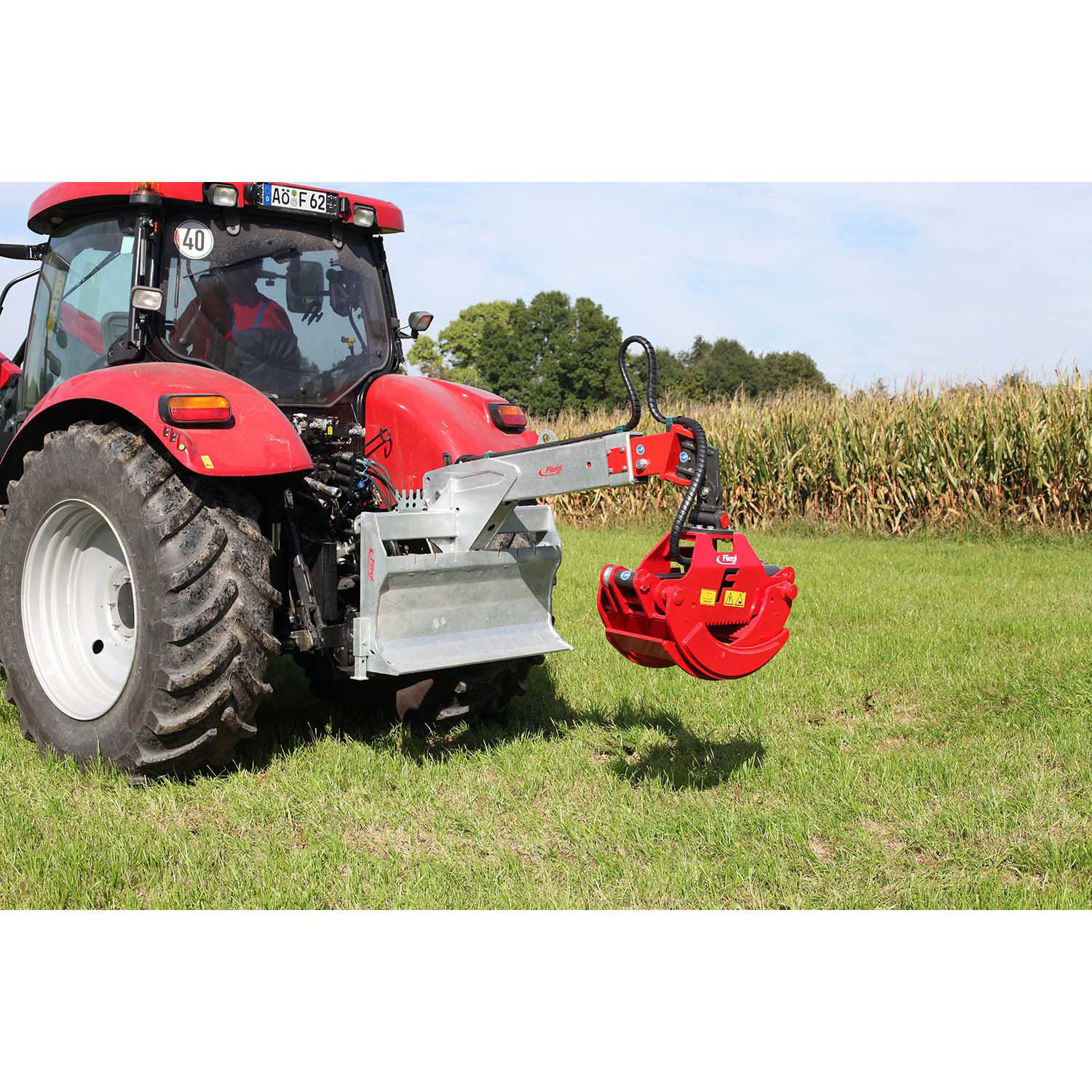

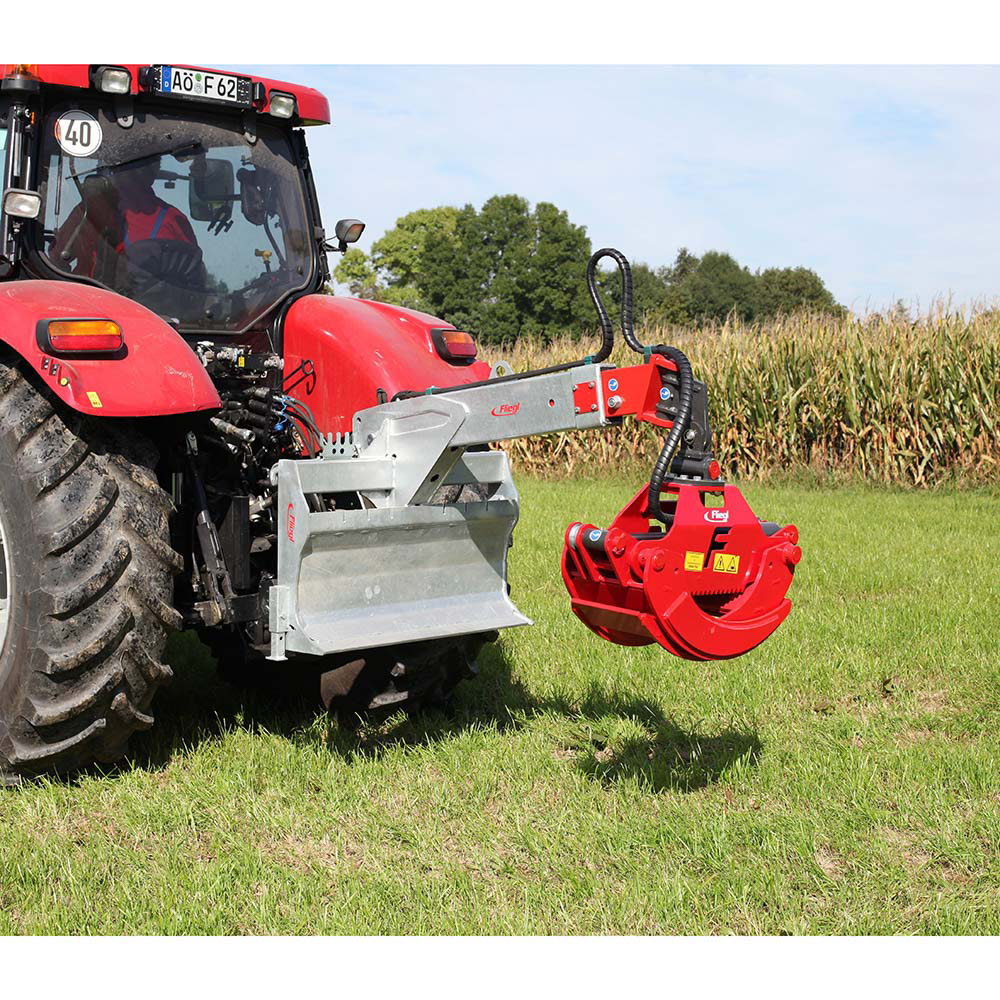

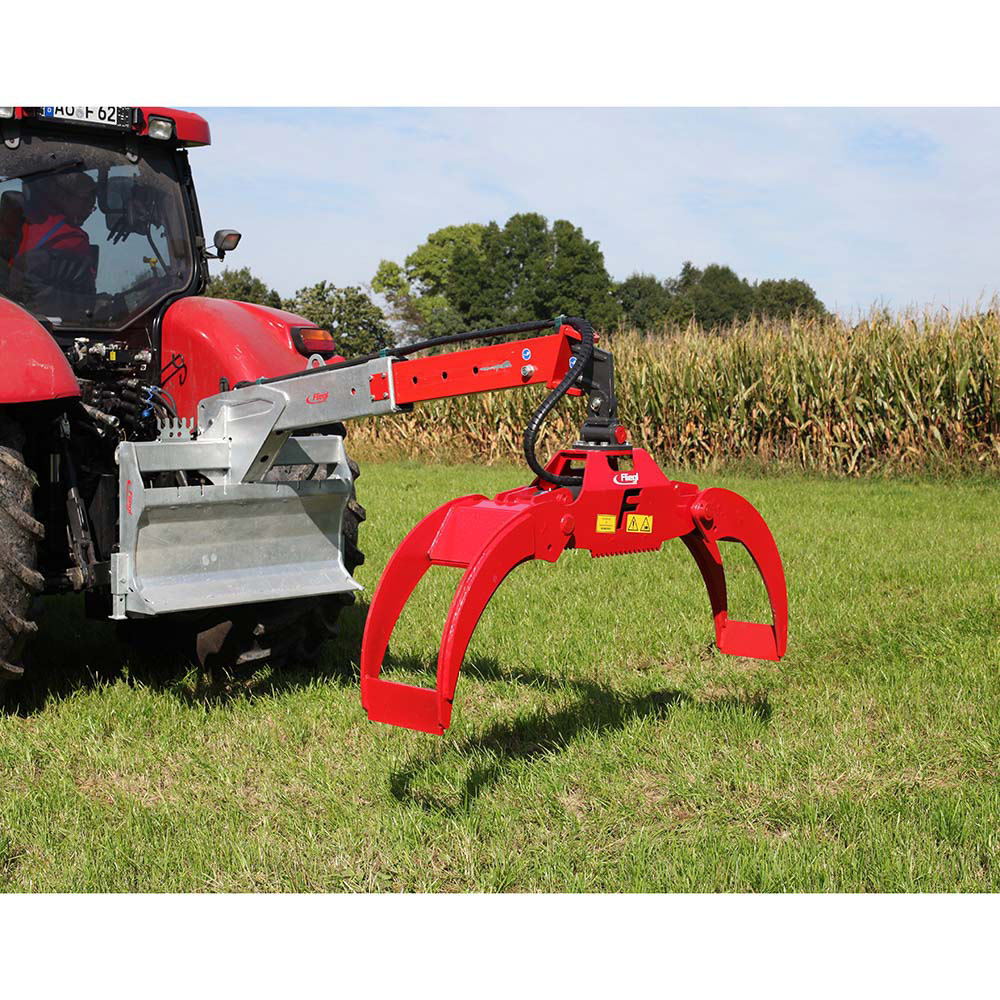

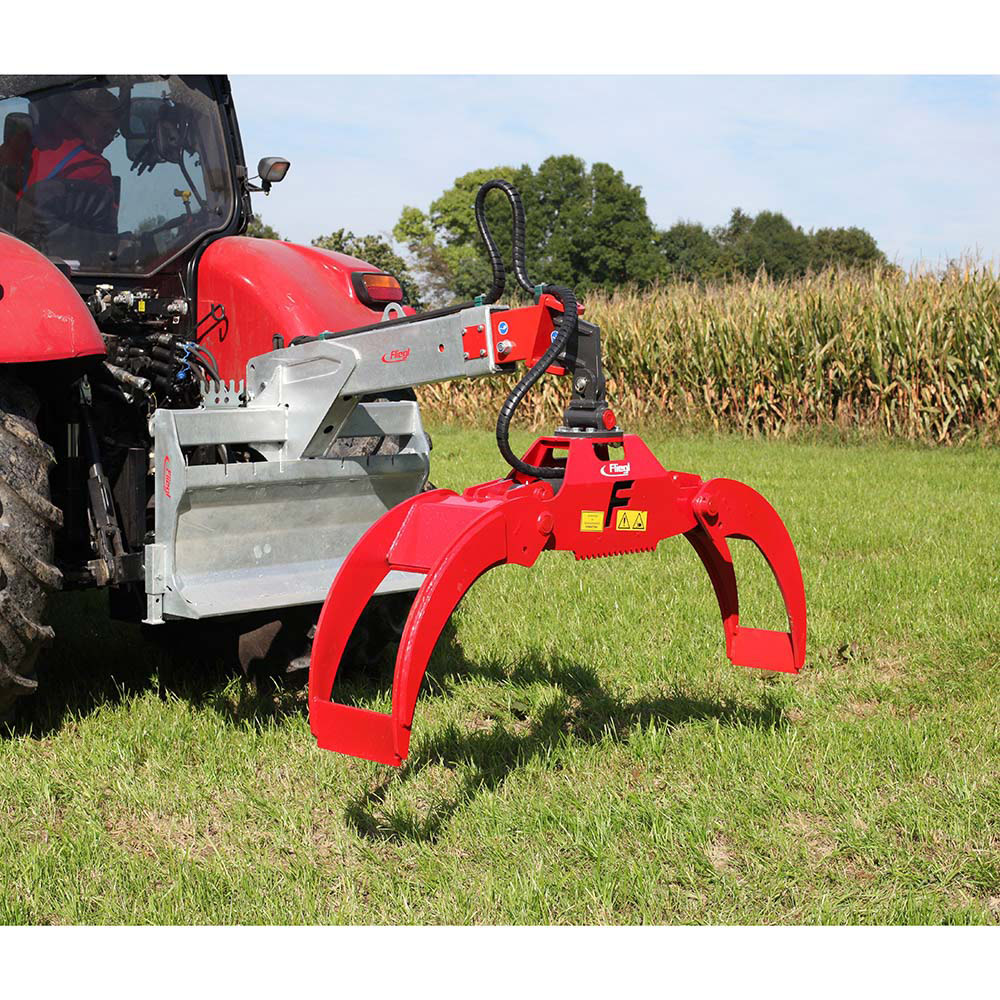

»RZ 185 LongNeck Combi« grapple

Name: »RZ 185 LongNeck Combi« grapple
SKU: RZXRTL165002
Price: 4210 EUR
Availability: InStock

wheel or telescopic loader mounting / galvanised

»RZ 185 LongNeck Combi« grapple

wheel or telescopic loader mounting / galvanised

Item #: RZXRTL165002

Weight (kg): 515 kg

This item is specially configured for you. For the exact delivery time,

Forwarding agent - group 3

Incl. VAT: 5.009,90 €

Excl. VAT:

4.210,00 €

To the product details To the accessories To the spare parts

Description
Videos

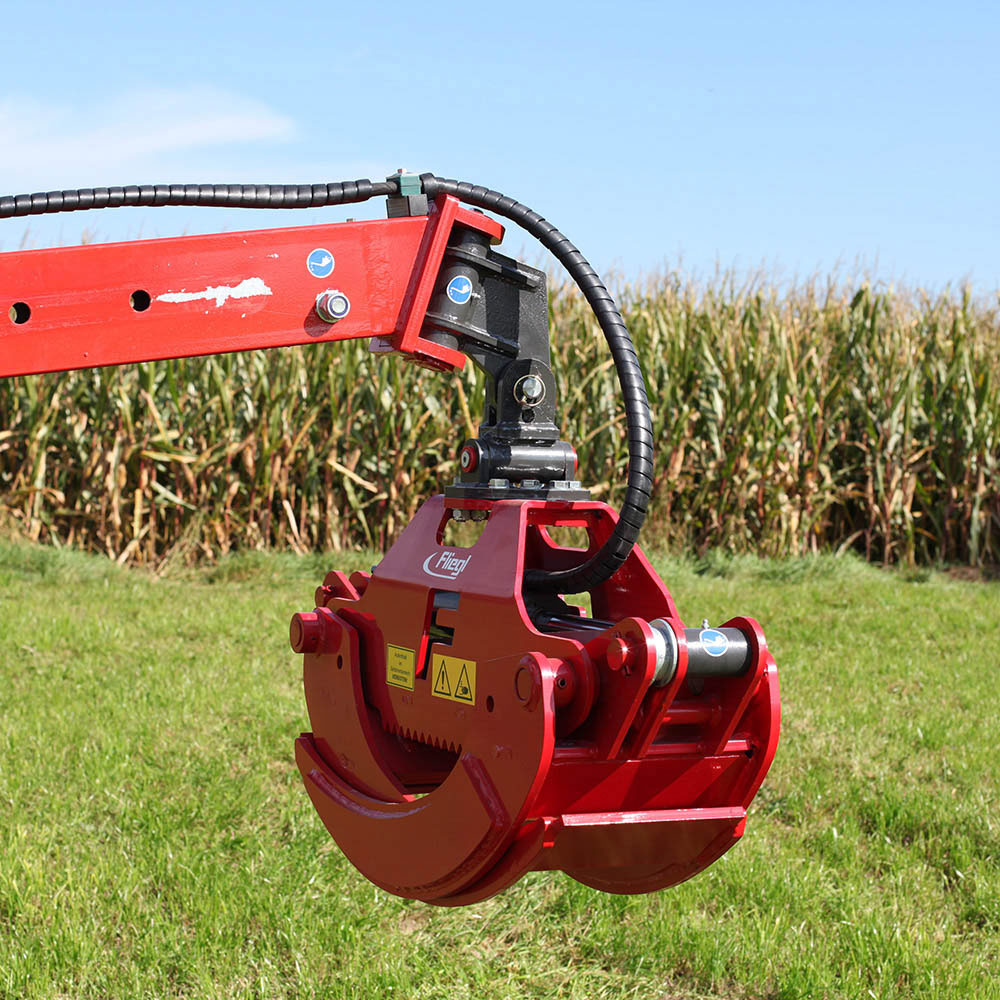

»LongNeck Combi« grapple Features:
Gripper:

Shank width: 400 mm
Jaws made from highly wear-resistant steel HB 500
Opening width, approx.: min. 119 mm, max. 1860 mm
Solid and robust, painted
Swivel joint returns to zero position
Can be swivelled by 90° on both sides: 3 pivot points – perfect adaptation to suit any terrain and all requirements
Double-acting hydraulic cylinder achieves enormous clamping force thanks to deflection
Integrated serrated ring prevents logs from slipping through
Incl. hydraulic connectors and hoses
Type LongNeck Combi: 2 double-acting connections required
Type LongNeck Combi-Plus: 3 double-acting connections required

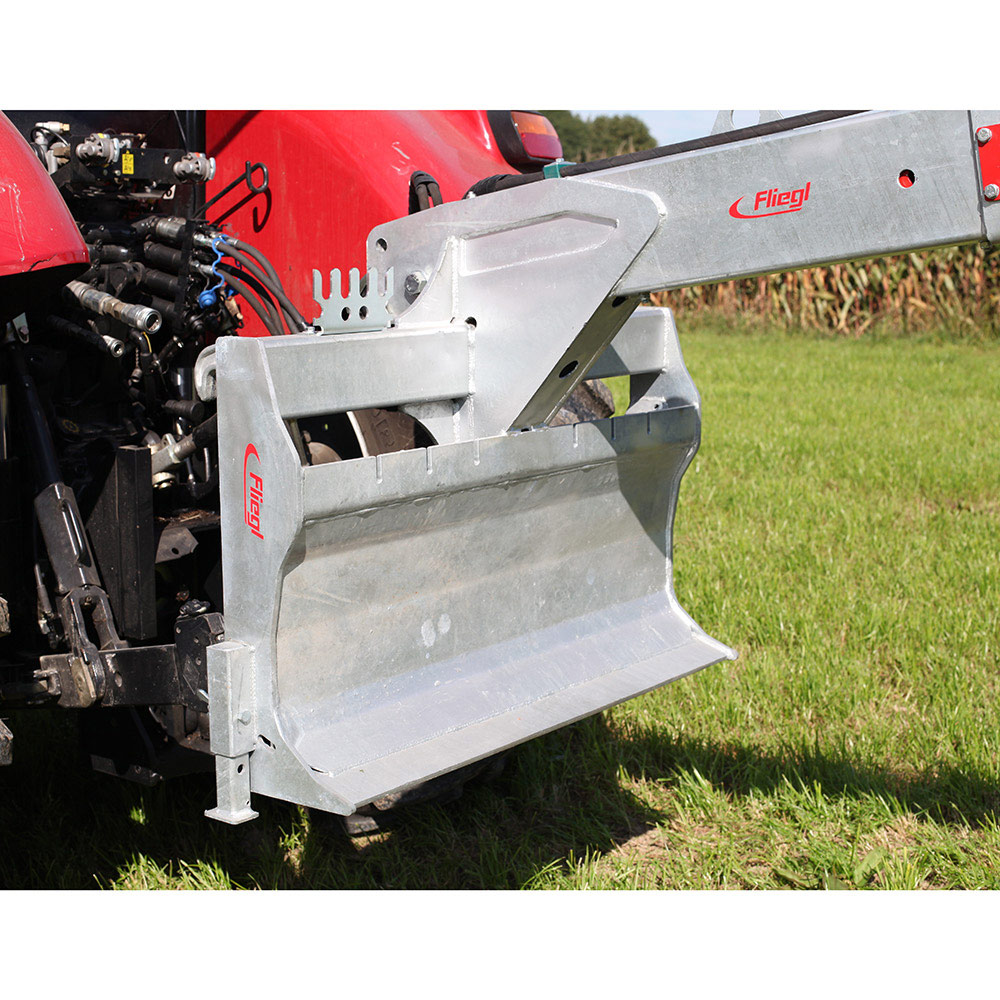

Mounting:

With combined Euronorm mounting and Cat. 2 three-point hitch as standard
With optional wheel or telescopic loader mounting
Solid and robust, galvanised
Hydraulic arm can be extended by 600 mm – infinitely variable working length
Easy extension thanks to plastic rails on extension tube

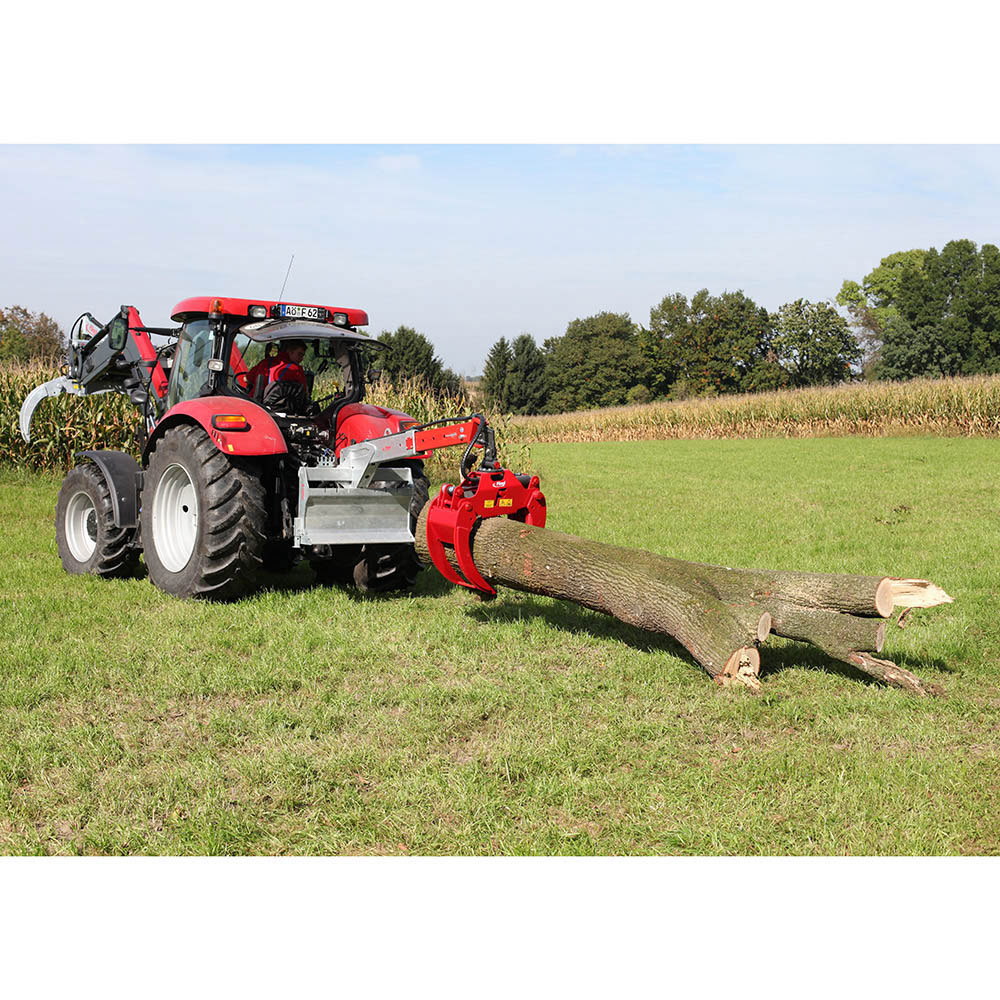

High timber stacking possible with front attachment
Adjustable supporting feet for straightforward coupling, incl. to tractor triangle
With optional stacking blade
