Pipe bending device for hydraulic pipes, for example

Our bending expert guides hydraulic pipes, for example, into the right track.

It is often necessary to adjust hydraulic pipes so that they can be laid correctly in the hydraulic circuit. With the pipe bending device from Fliegl, you can bend the pipes cost-effectively and without great effort. The rollers of the bending device are made of an aluminum alloy and are suitable for pipes with an outer diameter of 6 - 18 mm. Depending on the pipe diameter, bending radii of 33 - 51.5 mm can be achieved.

» Application:

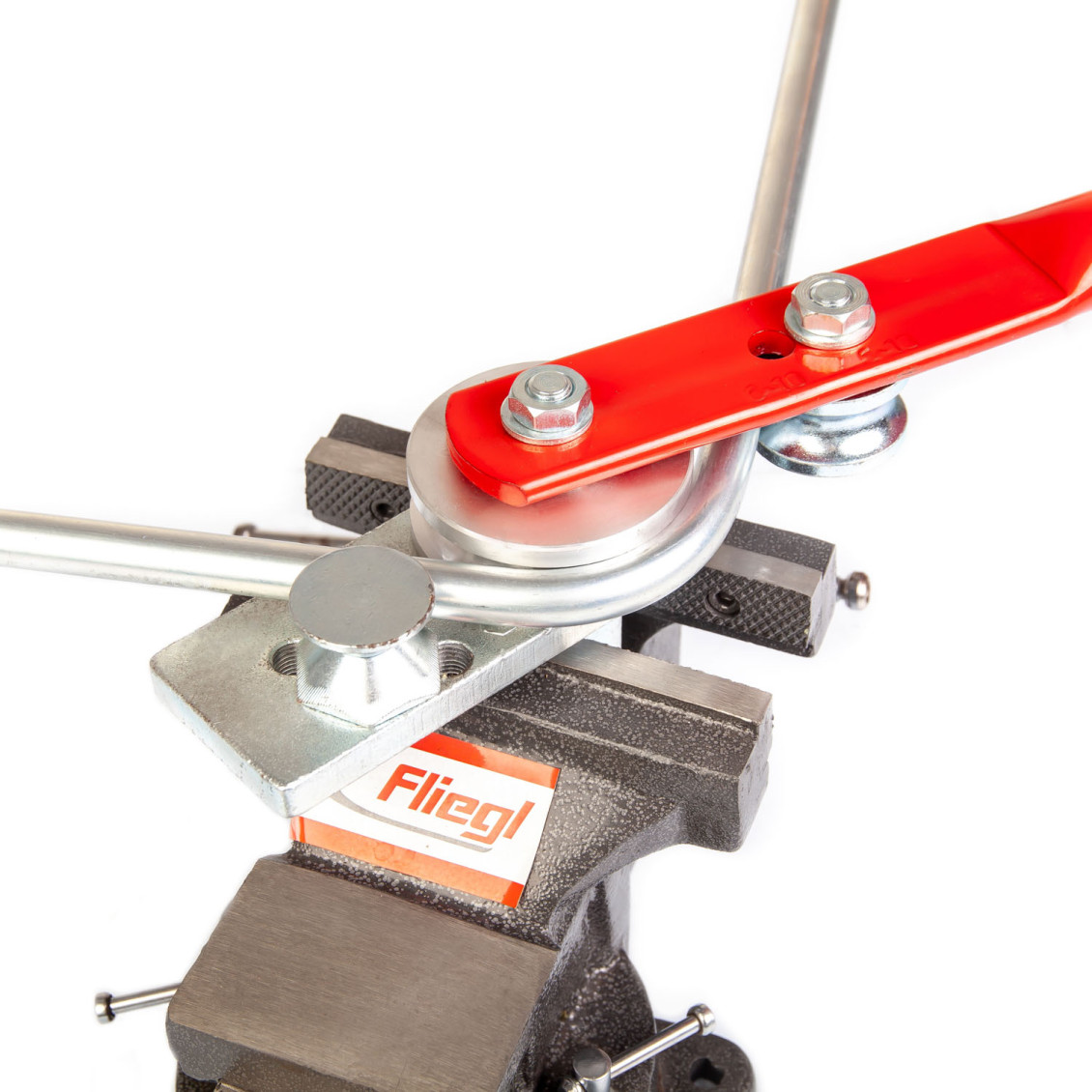

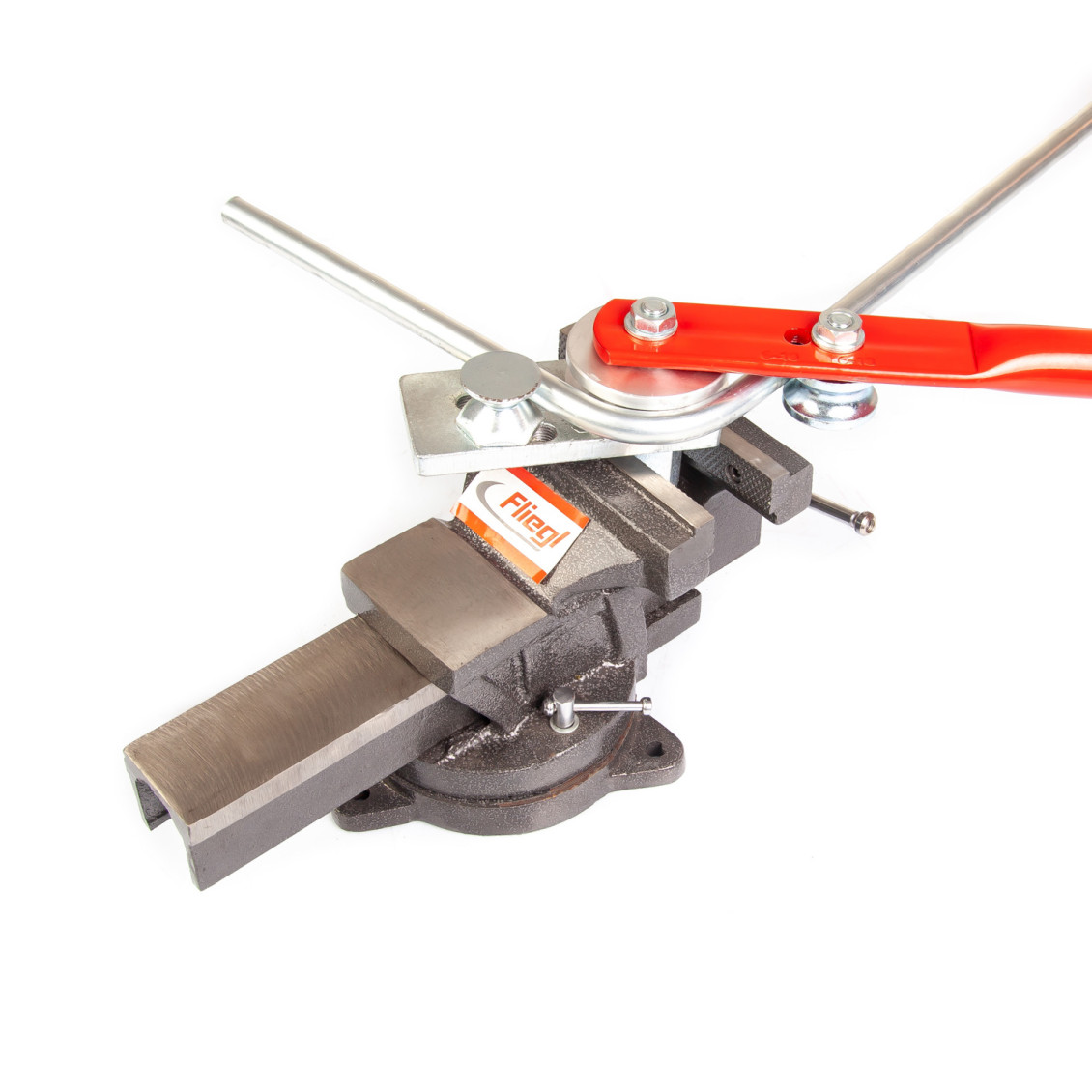

The bending device is clamped into a vice for fixation. The hydraulic pipe is guided on the base plate between the holder roller and the bending roller. There is a pressure pin on the bending lever. As soon as you pull the bending lever toward you, the pressure pin presses on the pipe and bends it over the bending roller.

» Bend carefully:
The pipe should not be bent too far. Excessive stretching can cause the stretched fibers of the hydraulic pipe to tear. The inside of the pipe can be compressed in the process. Therefore, it is essential to ensure that no waves form. Deformation of the hydraulic pipe can weaken the material. This can result in the deformed areas no longer being fully load-bearing and becoming leaky.

»No heating of the pipes necessary!
As a rule, pipes are not heated before bending. Heating softens the material, which can cause it to tear more quickly when bent. Even after cooling, the pipe no longer reaches its full hardness. To avoid deformation during bending, it is recommended to fill pipes with quartz sand.

» Other information:
    » Suitable for hydraulic pipes, but can also be used for other pipes from 6 to 18 mm
    » Rollers made of aluminum alloy
    » Max. radius 180°
    » Can be cold drawn
