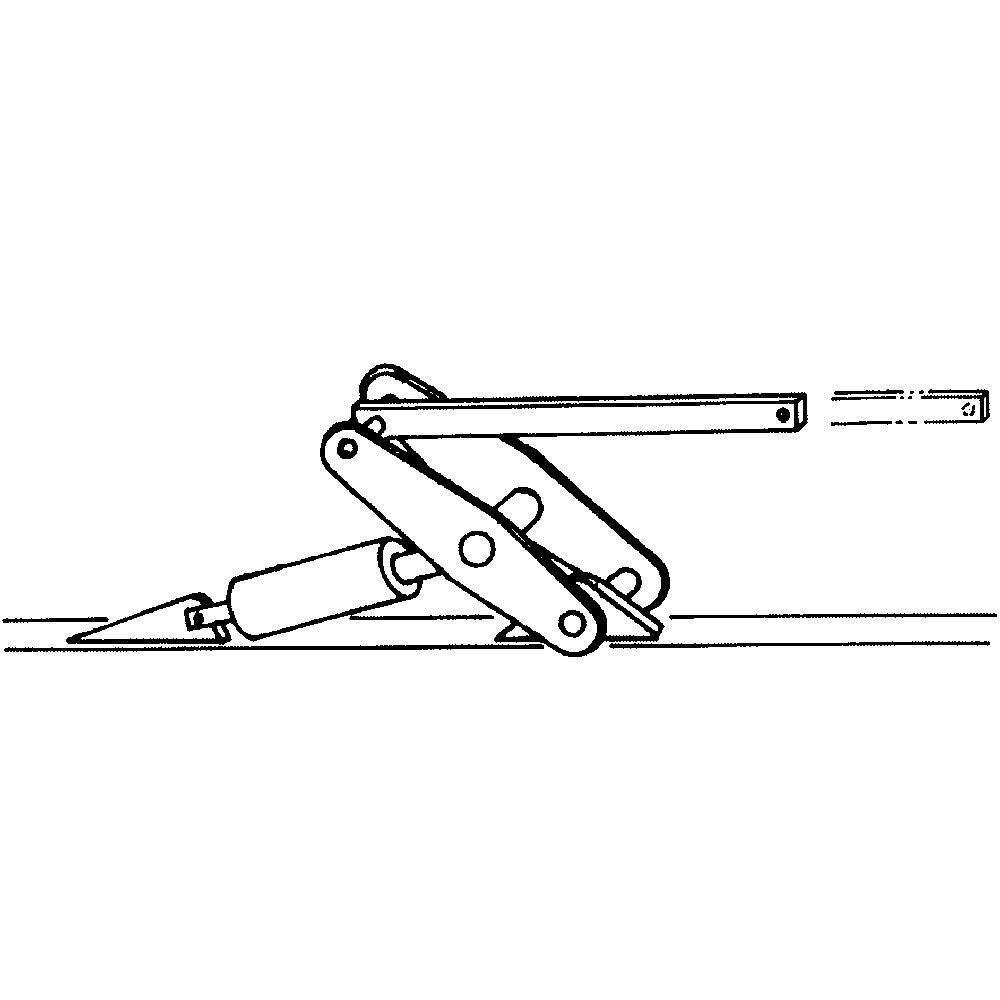

Attachment actuation Hydraulic Suitable for all front loaders.   Technical Details » Extremely long stroke of 850 mm – for tipping angles up to 180°
» Optimised cylinder deflection for ideal force progression
» Stronger, larger side of piston side draws the loaded attachment back
– Traction force: approx. 3.6 t at 180 bar
– Compressive force: approx. 5.0 t at 180 bar
» Weaker, smaller side of piston side presses the attachment down for unloading
» Smaller piston side, which requires less oil, performs the tipping process – no quick release valve required
» Extremely robust and compact construction – all bearings feature strong bolts (Ø 30 mm)
» Mounted in plain bearing bushes, self-lubricating
» Incl. hydraulic hoses and fittings up to centre of front loader
