Description

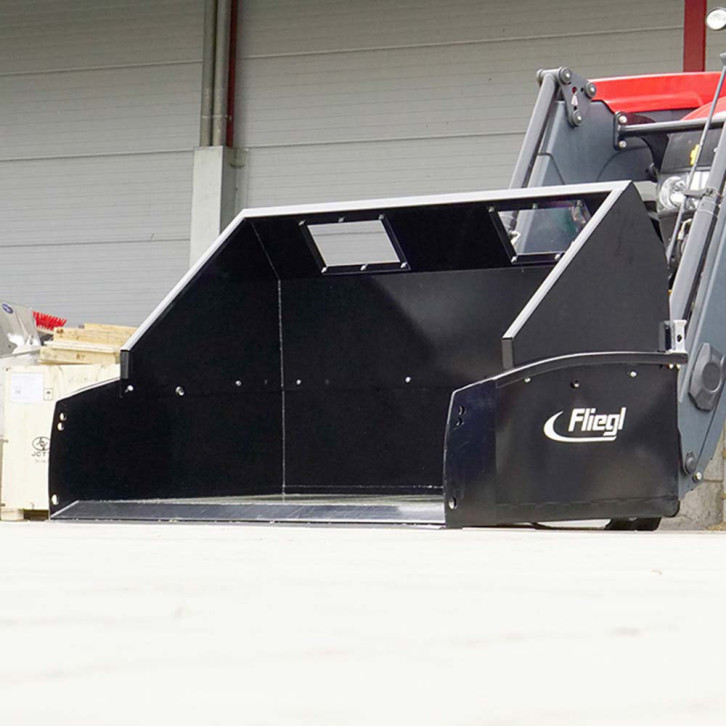

»Gigant« rear and high-tilt bucket
Technical details:
- With flexible folding wall, 1140 mm deep, inside height 500/430 mm
- Forklift mounting carrier, inside width 148 mm; also serves as bearing for tipping mechanism, making it highly robust
- 2-cylinder system
- Max. load capacity: 2.5 t
- 3-way mounting for forklift, threepoint and Euronorm mounting
- Very suitable as a high-tilt bucket, tipping angle about 111°
- Mounting block galvanised, tub painted
- Higher overloading height than with a conventional tipping bucket
- Bearing with bushings
- Flexible folding wall: Can be repositioned to extend to the load surface or rear wall
- Scraper rail made of HB 500, bolt-on, chamfered, fabricated as one piece – mounted with special countersunk screws which are flush with the scraper rail
