Female section - Bauer system

4" / with thread

morepic-1 morepic-2
Item #: GFZXXX043045
Weight (kg): 1.615 kg
In stock
Standard shipping
Incl. VAT: 34,51 €
Excl. VAT:
29,00 €
To the product details To the accessories To the spare parts
M-section with thread and O-ring »galvanized« - Bauer system

This system has a movable ring on the V-section to which the lever is attached. The M-section is cup-shaped and consists of only one part.

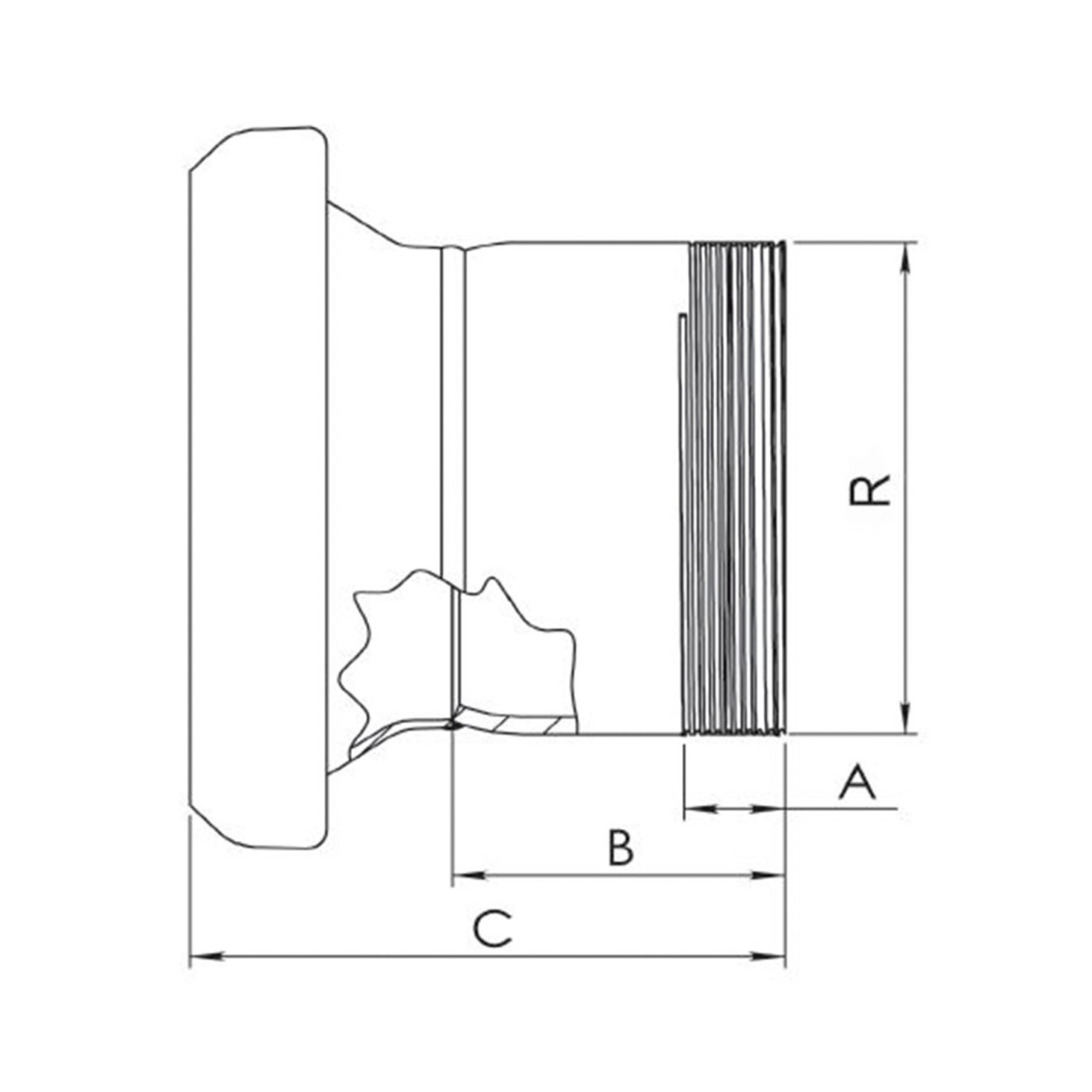

To determine the size of Bauer couplings, measure either the outer diameter of the V-section or the inner diameter of the M-section. The coupling hose connector is measured on the outer or on the inner hose diameter.
  • Size: 4"
  • Inner dimension: 144 mm
  • Hose size: 108 mm
  • With 4" thread
