BPW brake axle / 410 x 120 / 10-hole

Item #: ACHBPW101063

1950 mm / 12000 kg / 45°/centre / 120 mm

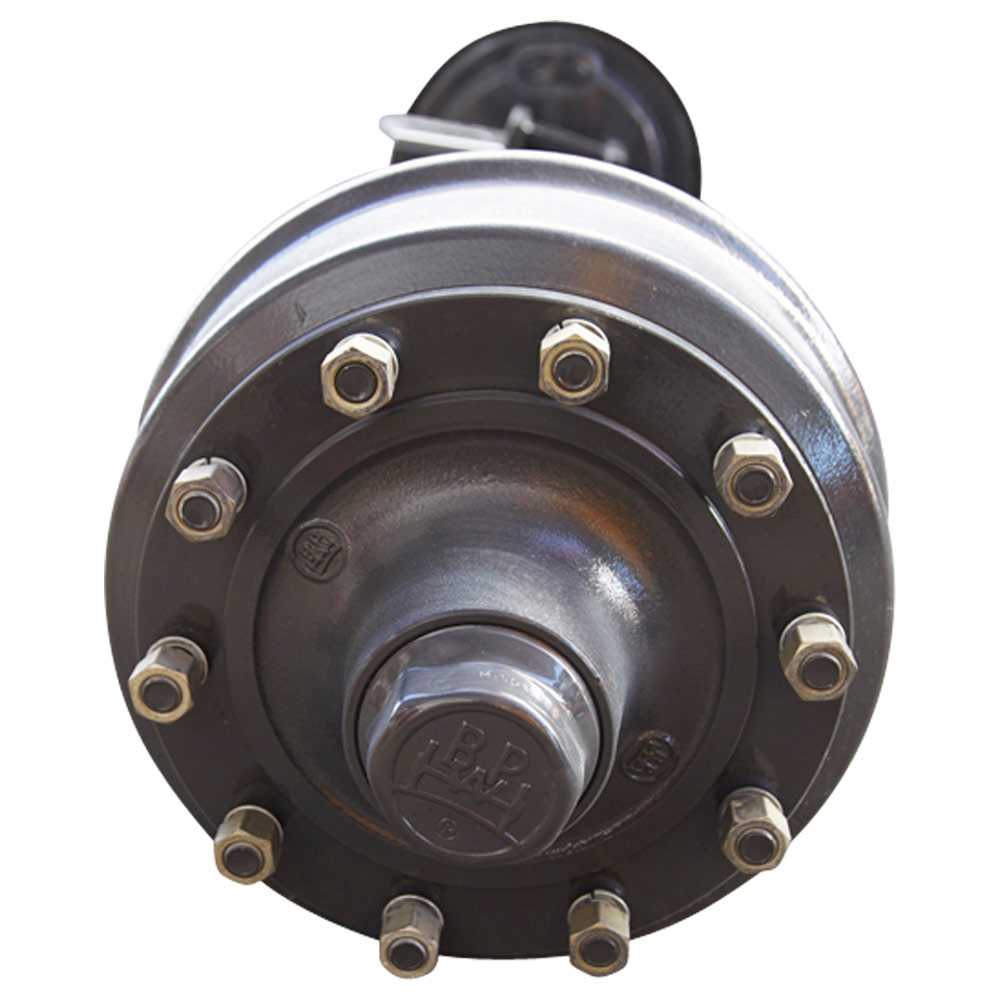

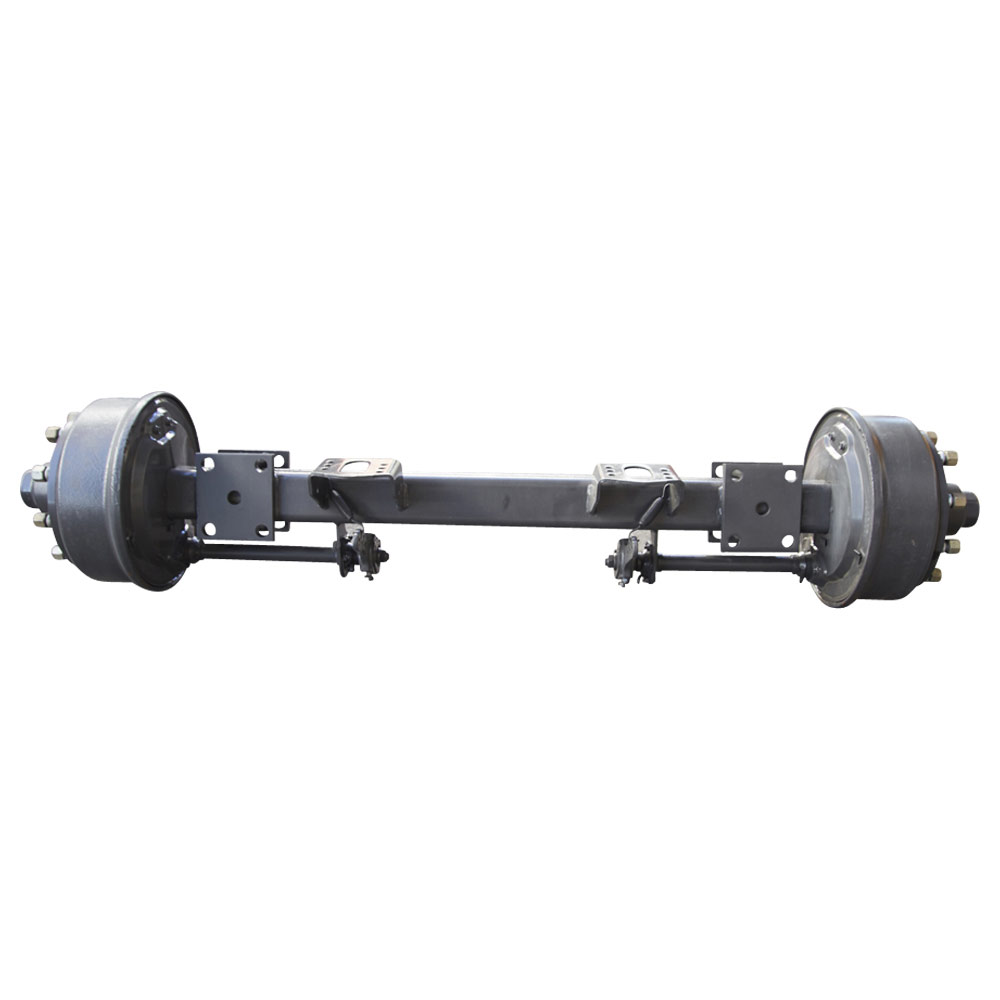

BPW brake axle / 410 x 120 / 10-hole

Product illustrations are exemplary. Subject to change without notice.

morepic-1

morepic-2

BPW brake axle / 410 x 120 / 10-hole

Item #: ACHBPW101063

1950 mm / 12000 kg / 45°/centre / 120 mm

Weight: 320 kg

Price

Incl. VAT: 2.653,94 €

Excl. VAT:

2.230,20 €

piece

In stock

Forwarding agent - group 2

Description

Bremsachsen eignen sich ideal für Umbauten von Fahrzeugen jeder Art und können mit den verschiedenen Bremssystemen kombiniert werden. Durch die robuste Bauweise wird Ihnen Zuverlässigkeit und Sicherheit garantiert. Da BPW einer der weltweit führenden Achshersteller ist, tragen höchste qualitative Anspruche, ebenso wie ein ausgezeichneter Ersatzteilservice, zur höchster Kundenzufriedenheit bei.

Hierzu erhalten Sie die Bremsachsen in den verschiedensten Varianten, die sich in Form und Achslast unterscheiden.

Die zulässige Achslast bezieht sich immer auf eine Geschwindigkeit von 25 km/h. Das Bremsgestänge wird je nach Bedarf nach links oder rechts verschoben und nach 30°, 45° oder 90° gedreht.

Technische Details:

Achslast 12500 kg
Spurbreite 1950 mm
Bremstrommel (Innendurchmesser / Backenbreite) 410 x 120 mm
Radanschluss 10 Loch
Gestänge mittig, 45°
Vierkant 120 mm

GS =Gestängesteller
AGS = Automatischer Gestängesteller (ab 62 km/h)
FM = Federmitte passend für: 55.88.460.281

Find similar articles

Vehicle construction /

Replacement items

Accessory items

Similar articles

Used to support your selection

Accessories

Axle plate loose for BPW - ADR

Axle plate loose for BPW - ADR

HS - 125x180 / Ø-30 / t-20

Art-Nr.: FNTXXX030146

Replacement parts

Bushing / ext. Ø= 46.0 mm/int. Ø= 42.0 mm/H= 72.6 mm/for brake camshaft

Bushing / ext. Ø= 46.0 mm/int. Ø= 42.0 mm/...

BPW 400-410x120+180/ET no. 3/40A/136/220A/T no. 03.112.44.34.0/9010/11010/12010

Art-Nr.: ACHBPW940170

GREASE NIPPLE AS8X1 DIN71412 VZ

GREASE NIPPLE AS8X1 DIN71412 VZ

Pos. 126 f. 4012-3 Nr. 02.6850.01.02

Art-Nr.: ACHBPW940516

COVER GPN 985/0201

COVER GPN 985/0201

BPW 400x80 / ET-Liste Nr. 48A / Teile-Nr. 02.3505.20.00

Art-Nr.: ACHBPW940004

Bushing sintered metal ball/ext. Ø 62 mm/int. Ø 42 mm/H 38 mm/f. brake camshaft

Bushing sintered metal ball/ext. Ø 62 mm/i...

BPW 410x120-410x180/SP list 15/127/231/part no. 03.113.14.04.0/GS11010/12010

Art-Nr.: ACHBPW940172

BEARING BOX WITH HOLE F SINTER BUSH

BEARING BOX WITH HOLE F SINTER BUSH

Pos. 128 f. GSLA11010 Nr. 03.229.02.19.0

Art-Nr.: ACHBPW940198

Bearing holder for bush

Bearing holder for bush

Pos. 128 f. GSLA11010 Nr. 03.229.02.18.0

Art-Nr.: ACHBPW940196

HEXAGON SCREW M 8X25 8.8 FLZNNCL

HEXAGON SCREW M 8X25 8.8 FLZNNCL

BPW 410x120+410x180 / Nr. 18/129/236/Nr. 02.5025.30.82/GS11010/GSHLL12010

Art-Nr.: ACHBPW940526

Spring washer / B-Ø= 8.8 mm/ext.-Ø= 15 mm/t= 0.1 mm/DIN 137/for brake camshaft

Spring washer / B-Ø= 8.8 mm/ext.-Ø= 15 mm/...

BPW 410x120+410x180 /SP no. 19/129A/237/part no. 02.5403.08.92/GS11010/GSHLL1201

Art-Nr.: ACHBPW940050

Hexagon nut DIN 934

Hexagon nut DIN 934

M 30 / 8 / steel

Art-Nr.: NKTXXX191148

Shock ring / ext. Ø=142 mm / int. Ø=86 mm / H=22 mm

Shock ring / ext. Ø=142 mm / int. Ø=86 mm ...

BPW 410x120 / SP list 29/137 / part no. 05.370.06.48.0 / GS 11010 - FL4112

Art-Nr.: ACHBPW940308

Thrust disc /ext. Ø 61.0 mm /int. Ø 43.0 mm / t 5.8 mm

Thrust disc /ext. Ø 61.0 mm /int. Ø 43.0 m...

BPW 410x120/SP list 30/149/part no. 03.320.73.13.0 / GS 11010 - FL4112

Art-Nr.: ACHBPW940248

M 42 x 2 / 410 x 120 / pos. 31/139 / no. 03.262.16.15.0 / GS 11010 / FL4112

Art-Nr.: ACHBPW940444

Split cotter pin ISO 1234 - BPW

Split cotter pin ISO 1234 - BPW

8 x 55 mm / BPW 410x120 / pos. 32/140 / no. 02.6201.82.01 / GS 11010 - FL4112

Art-Nr.: ACHBPW940098

Sealing ring / ext. Ø= 136.0 mm / int. Ø= 105.0 mm / t= 2.5 mm

Sealing ring / ext. Ø= 136.0 mm / int. Ø= ...

BPW 410x120/SP list 33/148/part no. 03.310.97.32.0 / GS 11010 - FL4112

Art-Nr.: ACHBPW940238

Sealing ring / ext. Ø= 142.0 mm / int. Ø= 111.0 mm / t= 2.5 mm

Sealing ring / ext. Ø= 142.0 mm / int. Ø= ...

BPW 410x120/SP list 34/147/part no. 03.310.97.31.0 / GS11010 - FL 4112

Art-Nr.: ACHBPW940236

Brake camshaft L 620 / A 501.5

Brake camshaft L 620 / A 501.5

pos. 43 FL4112 / no. 05.097.27.30.3

Art-Nr.: ACHBPW940496

O-Ring / O-Ø= 42,0 mm / Reihen / I-Ø= 37,0 mm / Reihen / S= 2,6 mm / Reihen /

O-Ring / O-Ø= 42,0 mm / Reihen / I-Ø= 37,...

BPW 400x120-410x180 / SP-list Nr. 44/227 / T-Nr. 02.5677.37.42/9010/11010/12010

Art-Nr.: ACHBPW940072

Locking ring / A 42 / DIN 471-FST (for shaft) / for brake camshaft

Locking ring / A 42 / DIN 471-FST (for sha...

BPW 400x120-410x180 / SP-Nr. 46/221/228 / T-Nr. 02.5676.01.00/9010/11010/12010

Art-Nr.: ACHBPW940070

Ring / O-Ø= 55 mm / I-Ø= 42 mm / S= 7 mm / for brake camshaft

Ring / O-Ø= 55 mm / I-Ø= 42 mm / S= 7 mm /...

BPW 400x120-410x180 / SP-Nr. 47/222/224/T-Nr. 03.310.12.24.0/9010/11010/12010

Art-Nr.: ACHBPW940228

O-Ring / O-Ø= 45,0 mm / I-Ø= 40,0 mm / S= 2,5 mm / for brake campshaft

O-Ring / O-Ø= 45,0 mm / I-Ø= 40,0 mm / S= ...

BPW 400x120-410x180 / SP-Nr. 48/223 / T-Nr. 02.5679.23.00/9010/11010/12010

Art-Nr.: ACHBPW940074

Sealing ring / ext. Ø= 56.0 mm/int. Ø= 42.1 mm/t= 2.0 mm/for brake camshaft

Sealing ring / ext. Ø= 56.0 mm/int. Ø= 42....

BPW 400x120-410x180/SP list 50/226/227/part no. 03.120.42.02.0/9010/11010/12010

Art-Nr.: ACHBPW940174

Locking ring O-Ø= 42,0 mm / Reihen / I-Ø= 37,0 mm / Reihen / S= 1,5 mm / Reihe

Locking ring O-Ø= 42,0 mm / Reihen / I-Ø=...

BPW 400x120-410x180 /SP-Nr. 51/229/260 / T-Nr. 02.5659.40.71/9010/11010/12010

Art-Nr.: ACHBPW940068

Pos. 230 f. GSLA11010 Nr. 03.320.11.16.1

Art-Nr.: ACHBPW940242

M22x1.5 mm / H=25mm / AF 32/400x80-410x180/SP list 94/204/part no.03.261.50.02.0

Art-Nr.: ACHBPW940206

Sealing ring/ext. Ø= 65 mm/int. Ø and ext. Ø= 41 mm or 47 mm/f. brake camshaft

Sealing ring/ext. Ø= 65 mm/int. Ø and ext....

BPW 400x120-410x180/SP list 55/131A/part no. 03.120.43.14.0/9010/11010/12010

Art-Nr.: ACHBPW940178

Sealing ring/ext. Ø= 53 mm/int. Ø and ext. Ø= 42 mm or 47 mm/f. brake camshaft

Sealing ring/ext. Ø= 53 mm/int. Ø and ext....

BPW 410x120+410x180/SP list 55A/131/234/part no. 03.120.42.09.0/GS 11010/12010

Art-Nr.: ACHBPW940539

GREASE NIPPLE AM10X1 71412

GREASE NIPPLE AM10X1 71412

Pos. 134 f. GSLA11010 Nr. 02.6802.03.50

Art-Nr.: ACHBPW940102

Pos. 130 f. GSLA11010 Nr. 03.350.30.02.0

Art-Nr.: ACHBPW940250

Tension spring/ O-Ø= 23,0 mm/turn-Ø= 2,8 mm/length (LW)= 148,0 mm

Tension spring/ O-Ø= 23,0 mm/turn-Ø= 2,8 m...

BPW 410x120-410x180 / list. Nr. 57/242 / P-Nr. 05.397.26.03.0 / GS11010/12010

Art-Nr.: ACHBPW940312

Slack adjuster straight / T=21 / Ø 42mm / 5-hole

Slack adjuster straight / T=21 / Ø 42mm / ...

Pos. 59 f. GS11010-1 Nr. 05.174.65.27.0

Art-Nr.: ACHBPW940302

Brake shoe set FL 4112

Brake shoe set FL 4112

BPW 410x120/SP list 72/part no. 09.803.62.09.0/GS 11010-1/FL 4112

Art-Nr.: ACHBPW950008

GRP brake shoe with pad

GRP brake shoe with pad

BPW 410x120/SP list 73/part no. 05.091.30.04.0 / GS 11010-1 /FL 4112

Art-Nr.: ACHBPW940288

HOOK SPRING RING D=33/30 C-CLAMP

HOOK SPRING RING D=33/30 C-CLAMP

Pos. 222 f. GSLA11010 Nr. 03.188.02.02.0

Art-Nr.: ACHBPW940184

ROLLER WITH BUSH, WITHOUT BOLT

ROLLER WITH BUSH, WITHOUT BOLT

Pos. 250 f. FL4112 Nr. 05.331.44.02.0

Art-Nr.: ACHBPW940446

Pin / ext. Ø= 26.0 mm / length = 58.5 mm

Pin / ext. Ø= 26.0 mm / length = 58.5 mm

BPW 410x120-410x180/SP list 77/192/part no.03.084.75.24.0/GS11010/12010

Art-Nr.: ACHBPW940140

Pos. 255 f. FL4112 Nr. 03.310.70.15.0

Art-Nr.: ACHBPW940232

Rivet / ext. Ø 8 mm / length 15 mm / DIN 7338

Rivet / ext. Ø 8 mm / length 15 mm / DIN 7...

BPW 410x120-410x180/SP list 80/191/part no. 02.5805.80.35/GS11010/12010

Art-Nr.: ACHBPW940082

Pos. 254 f. FL4112 Nr. 05.397.58.03.0

Art-Nr.: ACHBPW940314

TENSION SPRING Ø3,2SN420/360_HOOK

TENSION SPRING Ø3,2SN420/360_HOOK

Pos. 254 f. FL4112 Nr. 03.397.33.12.0

Art-Nr.: ACHBPW940270

Tension spring / Ø 19 / 3,6 x 36

Tension spring / Ø 19 / 3,6 x 36

Pos. 254 f. FL4112 Nr. 03.397.33.13.0

Art-Nr.: ACHBPW940272

Hub / 10-hole / bearing 32310/33116 / bolt circle 335 mm

Hub / 10-hole / bearing 32310/33116 / bolt...

BPW 410x120/SP list 84/part no. 03.271.54.90.0 / GS 11010-1 / FL 4112

Art-Nr.: ACHBPW940216

BPW brake drum ring

BPW brake drum ring

410x120 / 10 -hole / SP no. 86/part no. 03.106.91.10.0 /03.106.00.10.0

Art-Nr.: ACHBPW940164

M22 x 1.5 mm / length 80 mm/400 x 80-410 x 180/SP list 91/202/T no. 03.296.33.11

Art-Nr.: ACHBPW940224

BPW wheel stud incl. nut and spring washer

BPW wheel stud incl. nut and spring washer

M22 x 1.5 mm/length 80 mm/400 x 80-410 x 180/SP list 90/92/202A/T no. 09.803.80.

Art-Nr.: ACHBPW950114

Spring washer for wheel stud

Spring washer for wheel stud

C22.5 / DIN 74361

Art-Nr.: ACHBPW940066

Taper roller bearing

Taper roller bearing

Art-Nr.: NKTXXX010054

Cover plate / external Ø 129 mm/ internal Ø 84 mm/ t 8.5 mm

Cover plate / external Ø 129 mm/ internal ...

BPW 410x120/SP list 95A/part no. 03.010.93.33.0/GS 11010-1/FL 4112

Art-Nr.: ACHBPW940666

Taper roller bearing

Taper roller bearing

Art-Nr.: NKTXXX010057
