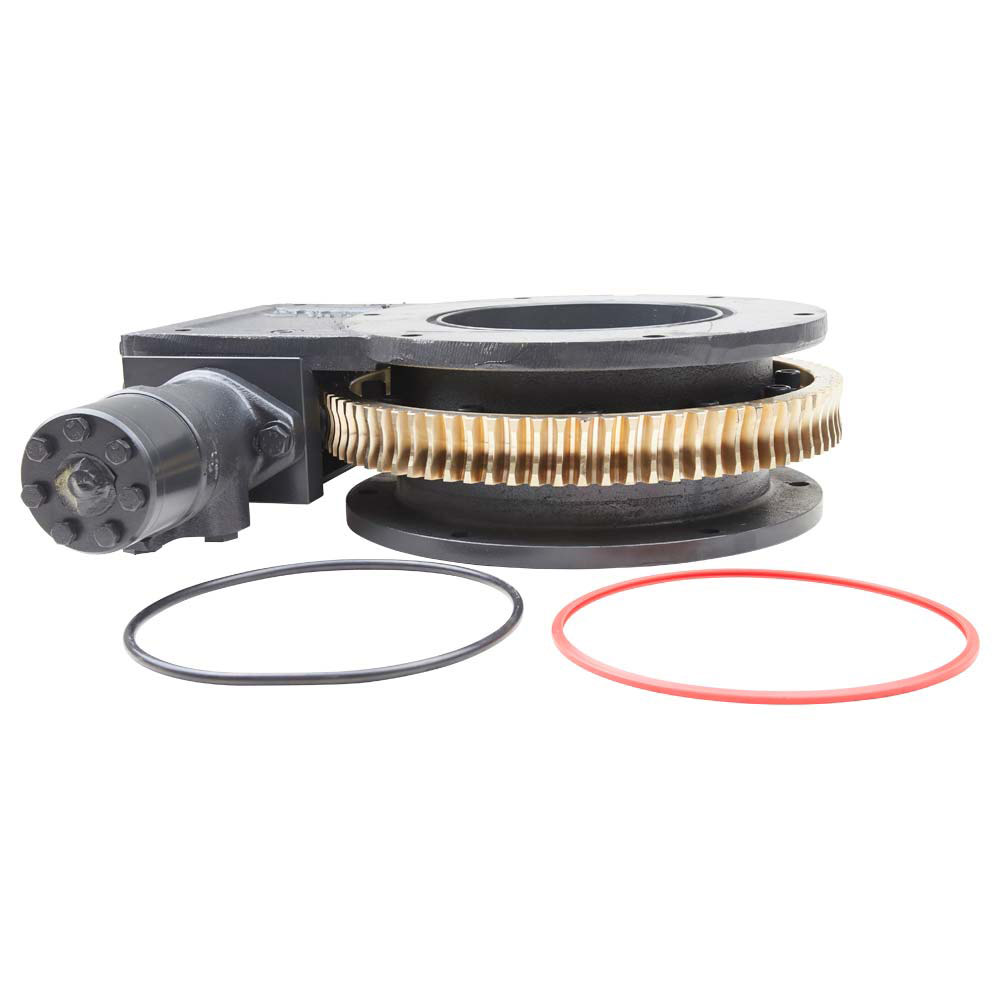

Slewing ring Battioni hydraulic REVOBLOCK 10 - Art. no. = GFZXXX980156
I-Ø: 200 mm (8") / incl. oil motor CLR 315-Ø 25 mm / 10000 Nm

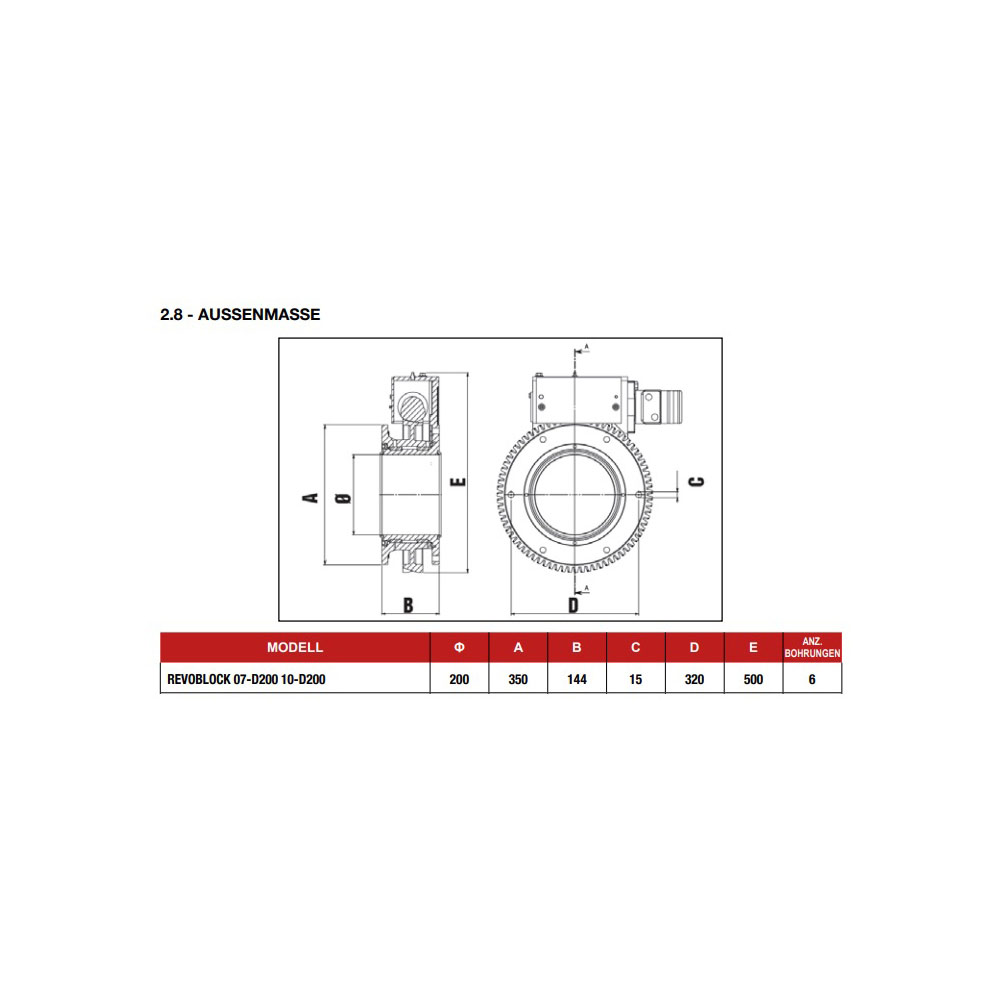

Technical details:
» Internal diameter: 200 mm
» Rotary flange diameter: 350 mm
» External diameter: 500 mm
» Width: 144 mm
» Hole: 15 mm
» Hole spacing: 320 mm
» Number of holes: 6
» Material: highly resistant and spherulitic cast iron
» With brass teeth
» Operating pressure: 6 bar
» Temperature range: -15°C / +80°C
» RPM: 2.7
» Max. Torque: 10000 Nm
» Bending moment: 20000 Nm
» Rotation: 360°
» Incl. 2x support ring (red) and 2x O-ring
» incl. seal
» Shaft diameter of the oil motor: 25 mm
» Suitable for oil motors from the CLR, OMR, CLP series
» Oil motor: max. pressure 165 bar / temperature -30°C/+60°C / max. flow rate 60 liters
» Risk analysis in accordance with ISO 14121:2007
» Self-braking system in the event of pressure loss
» Installation as a component with both horizontal and vertical axis
» Own weight: approx. 65 kg
