Battioni compressor - single connection / Nova grey

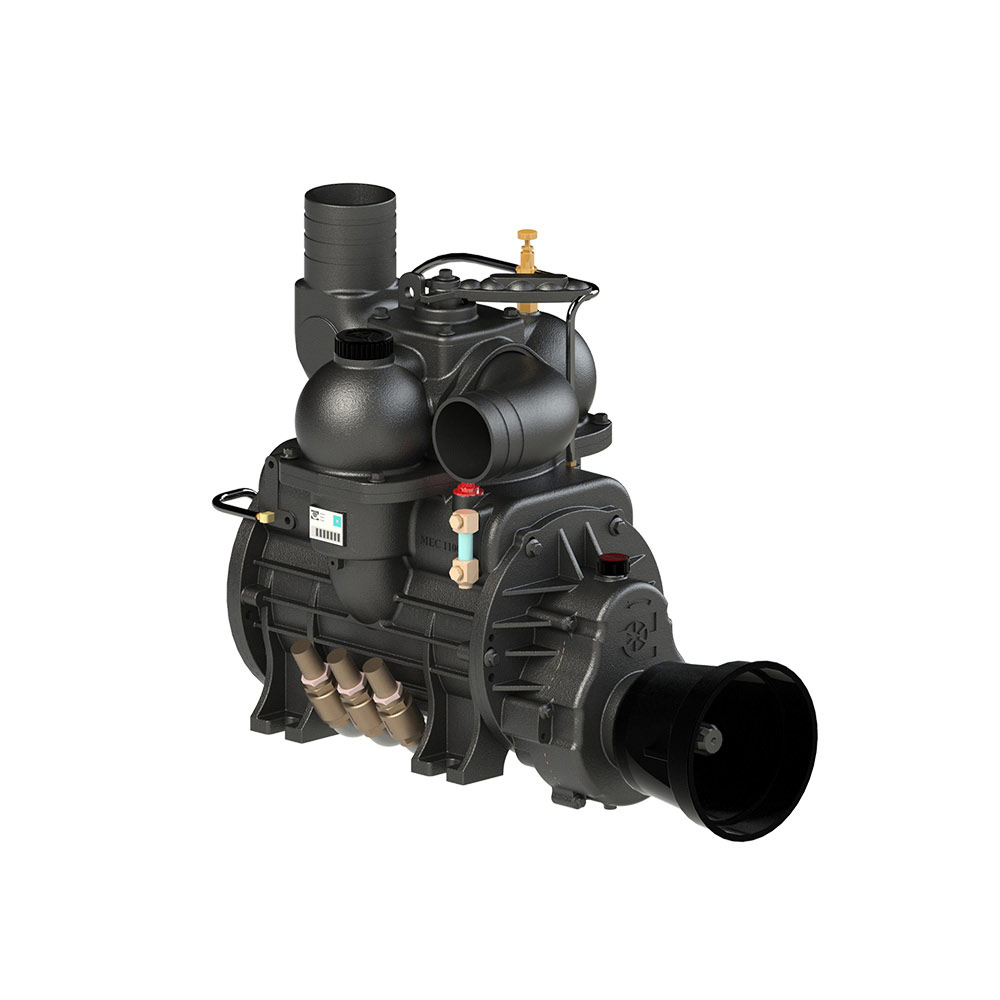

Compressor »Battioni Ballast«
Ballast 13500/MA

These compressors are built to a high quality level and are used almost exclusively for agricultural applications. They are especially suitable for manure and faeces tanks and can be used for suction and application. All compressors come standard equipped with a gear wheel oil pump and check valve as well as a suction and pressure conveyor.

• Heat-resistant blades
• Wear indicator for blades
• Temperature display
• Rotor anti-crash device
• Runtime of at least 15 minutes is possible without a cooling off phase
• Lubrication: automatic / oil pump
• Lowest wear

Technical data:

• Revolutions: 1000 rpm
• Pressure max: 2.5 bar
• Separate air cooling injector for continuous use at maximum 0.65 bar negative pressure!!
• Caution: Must be set to a negative pressure of 0.7 bar
• Maximum operating temperature 160 °C
• Power requirement at maximum volume 95%: 25 kW
• Max. air output: 13845 l/min.
• Net weight: approx. 178 kg
• Hose connection: 100 mm
• Relief valve: 2"
• A tip from us:
• To achieve optimum filling capacity, the air output of the compressor should be at least 60% greater than the size of the tank.
• The relief valve is not included with delivery of our compressors. Please order it separately.

Please specify the hose diameter in the order!
(60mm, 80mm, or 100mm)


Caution:
Never use the compressor without protective cap. The protective cap is included with delivery.
On request we can offer you many other compressors as well as special models such as with hydraulic drive.
Please enquire!
